Carbon fiber has revolutionized the cycling industry, particularly in the design and manufacture of rims and wheelsets.

Its unique combination of strength, light weight, and aesthetic versatility makes carbon fiber an ideal material for high-performance cycling components.

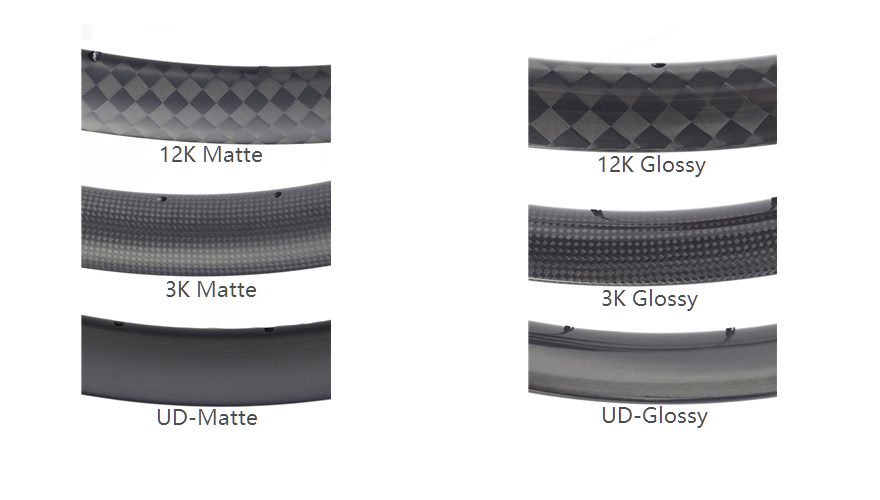

Carbon has a lot of different appearances. The most common patterns are UD, 3k and 12k.

Most of customers are confused which weave is more stronger. It's hard to tell which one will better. Each of weaves has a certain purpose.What we would like to say here is the weave we made for our carbon rims is only part of the top layer of the rim.Simply put,the choice is more about aesthetics than performance.

In this article, we will explore the visual appeal, weave patterns, and customization options available for carbon fiber rims and wheelsets.

Understanding Carbon Fiber Tow

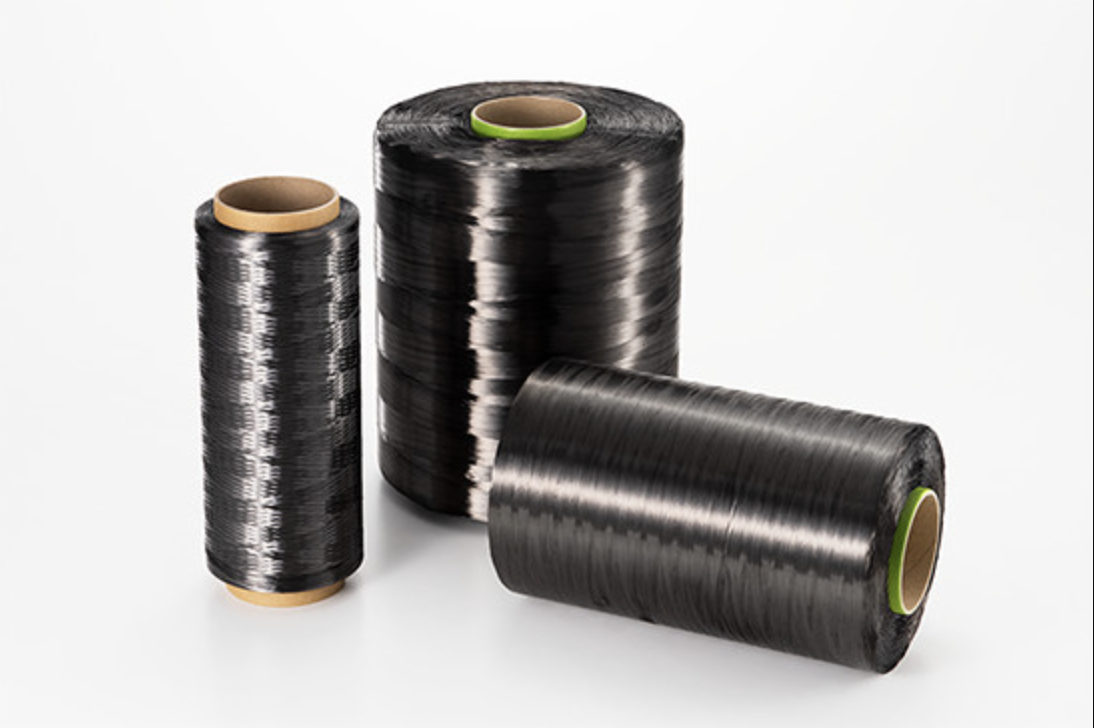

Carbon fiber is often supplied in the form of continuous tow wound onto a reel. This tow is a bundle made up of thousands of individual carbon filaments that are held together and protected by an organic coating.

Each filament is a continuous cylinder measuring 5 to 10 micrometers in diameter and consists predominantly of carbon.

The tow can be easily unwound from the reel for manufacturing processes.The “tow” plays a crucial role in the creation of carbon fiber fabrics, which are used extensively in wheel and rim construction.

The number of filaments per tow determines the designation, such as “3K” or “12K”. For example, a 3K tow has 3,000 filaments, while a 12K tow has 12,000 filaments.

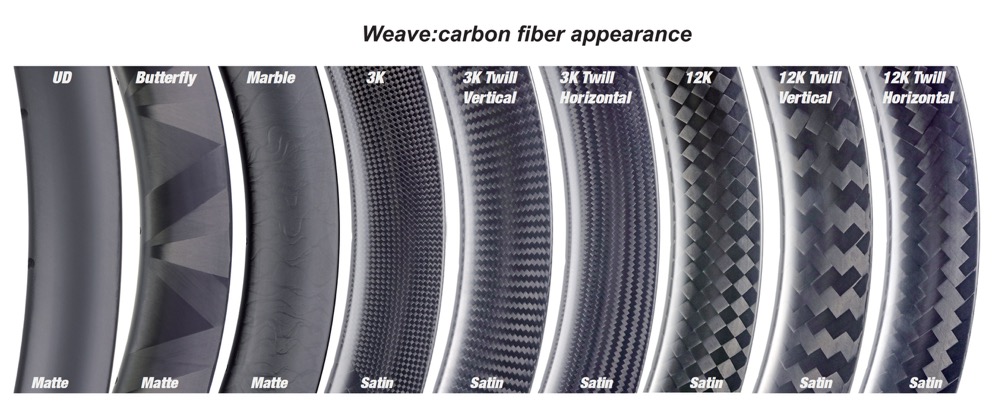

The visual appearance of carbon fiber rims largely depends on the weave pattern utilized. Here are the most common types you will encounter:

1. UD Carbon (Uni-Directional):

In this design, all the fibers run parallel in the same direction, which provides significant strength and stiffness.

This pattern not only offers excellent performance characteristics but also presents a streamlined and sleek appearance.

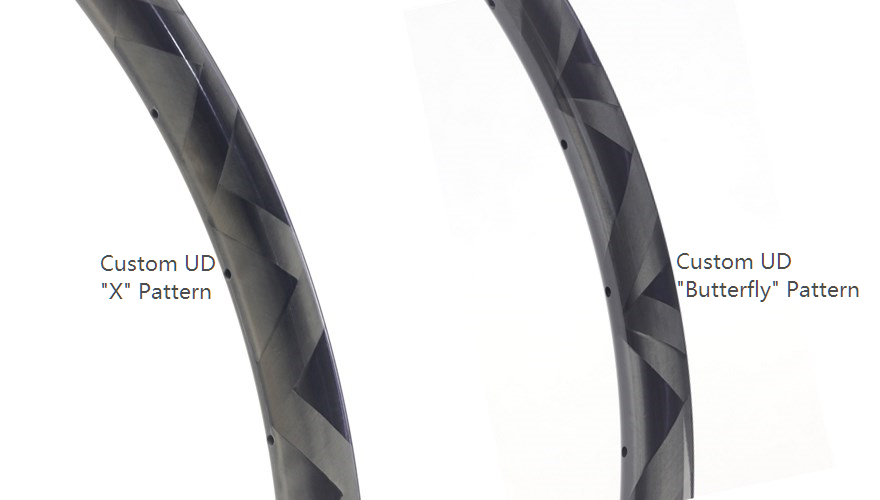

EIE also offers custom patterns, including "X"，6-UD Braid,8-UD Braid and "Butterfly" designs. Creating these custom weaves requires complex carbon layup processes, resulting in an additional cost of $15-25, depending on the requested pattern.

2. 3K Weave:

Characterized by having 3,000 filaments per tow, 3K weave provides a good balance between structural integrity and weight.

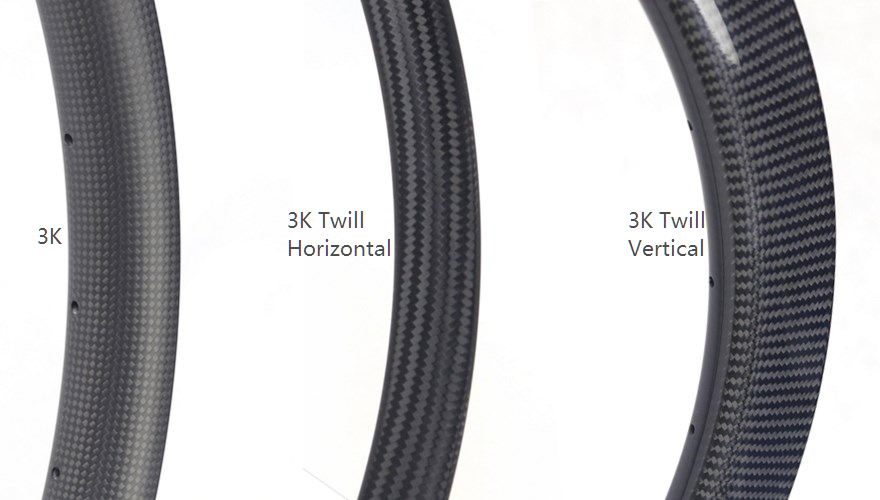

EIE offers various 3K options, including standard 3K, as well as 3K Twill (available in horizontal and vertical patterns). These twill options not only enhance the aesthetic appeal but also provide multifunctional benefits during performance.

3. 12K Weave:

With 12,000 filaments per tow, the 12K weave is designed for those seeking maximum structural strength and durability.

EIE provides multiple variations of the 12K weave, including 12K Twill (horizontal and vertical). Customers can easily choose their preferred twill options during the shopping process.

Carbon fiber rims and wheelsets are not just about performance; they are also a canvas for aesthetic expression.

With various weave patterns and customization options, we offer cyclists a unique opportunity to combine function with style.

Whether opting for a sleek UD finish or a classic 3K or 12K weave, the visual impact of carbon fiber rims is undeniable.

EIE is committed to providing the highest quality carbon fiber wheels that not only perform exceptionally but also look stunning on any bike.

Explore our collection today and discover the perfect carbon fiber rims and wheelsets that not only elevate your cycling experience but also showcase your personal style.
