SR45TC26 DISC CARBON ROAD RIMS AND CUSTOM WHEELS

700C 45mm deep 26mm wide clincher carbon disc rims and custom build wheels for road bikes

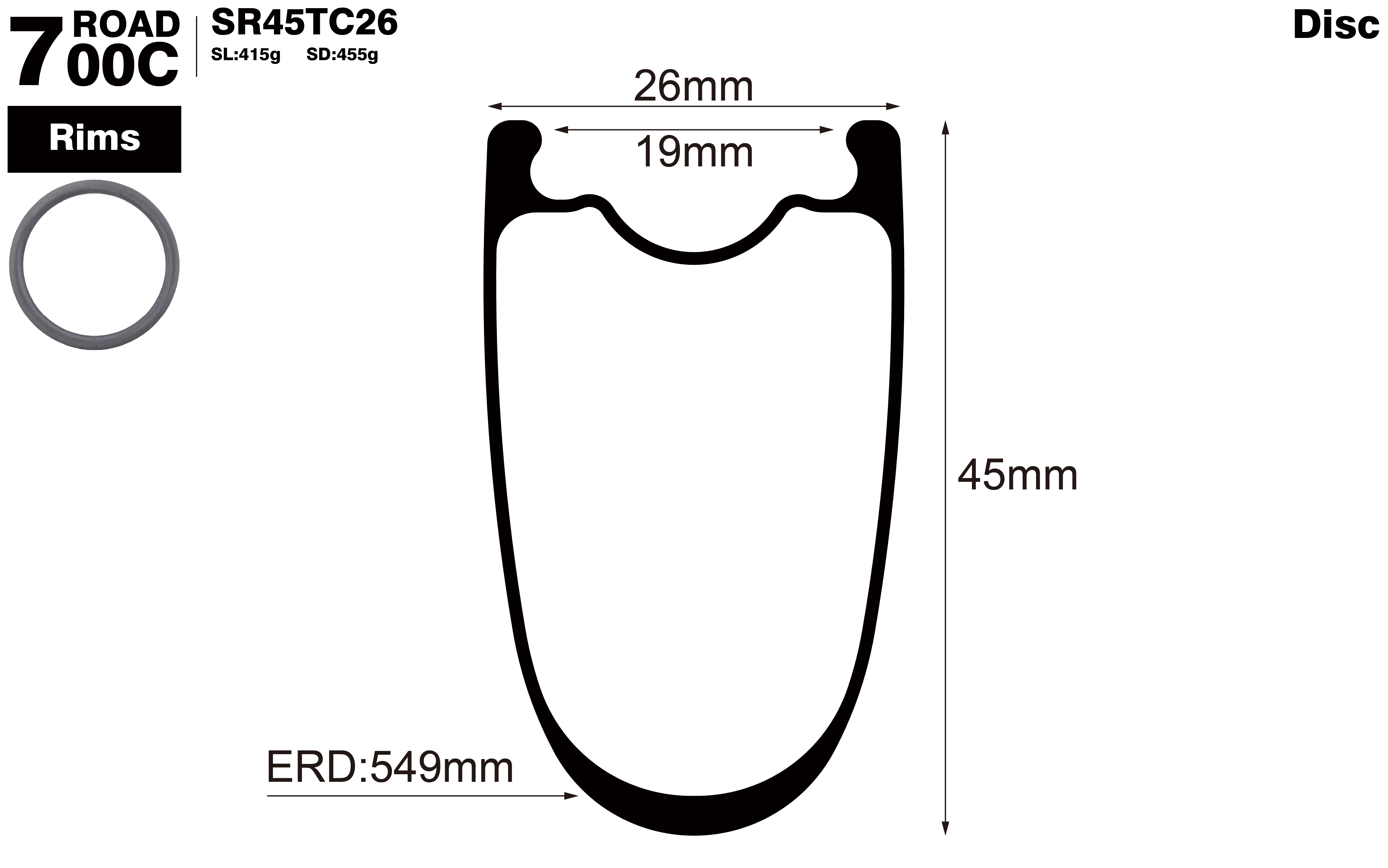

  • 700C-I19-D45-symmetric-road-bike-clincher-carbon-rims-profile-drawing
  • 700C-I19-D45-symmetric-road-bike-clincher-carbon-wheels-profile-drawing
  • 700C-I19-D45-symmetric-road-bike-clincher-carbon-rims-profile-drawing
  • 700C-I19-D45-symmetric-road-bike-clincher-carbon-wheels-profile-drawing

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: SR45TC26 Warranty: 2 Years (From purchase date)
    Basic
    Size: 700C Material: Toray Carbon Fiber (T700,T800,T1000） Rim Type: Clincher W/Hooks Tubeless: Compatible ERD: 549mm(Not including nipple head dimension) Outer Width: 26mm Inner Width: 19mm Rim Depth: 45mm Offset: 0 mm(Symmetric) Spoke Hole Angle: ±9° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Brake System: Disc Version: SD:455±15g | SL:415±15g | UL:380±15g(Only UD ) Hole Count: 16H | 18H | 20H | 21H | 24H | 28H | 32H | 36H | 0H | Custom Hole Drilling: 1:1 | 2:1 | G3 | Custom Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | 2:1-F Standard Holes Drilling | 2:1-T Standard Holes Drilling | G3 Standard Holes Drilling | | | 2:1-T UST Drilling | 2:1-F UST Drilling | 2:1-F Hidden Nipples Drilling | Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: UL:≤90kg,SL:≤120kg,SD:≤135kg Tire Size: 23C~38C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended
    Explanation
    Standard Version: SD version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800 Ultra-Lightweight: UL version is constructed by fully carbon fiber T800 or blend of T800
    Application
    SD Version: Road Disc/Gravel/CX SL Version: Road Disc/Gravel/CX UL Version: Road Disc/Gravel/CX
    Hubs
    Models: DT SWISS 180 EXP, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D,Carbon-Ti X-Hub, Extralite, Tune,Bitex BX312F / BX312R,Bitex BX306F/R, Novatec D411SB / D412SB,EIE ER270,EIE ER315 Front Axle Size: 12*100mm,15*100mm,QR*100mm Rear Axle Size: 12*142mm, QR*135mm Driver Body: Shimano Road 11S,Sram XDR, Shimano MSR,Campy 11-12S,Campy N3W 13s
    Spokes
    Sapim: Sapim CX Ray,Sapim Super CX,Sapim D-light,Sapim Race,Sapim Laser,Sapim CX sprint etc. Pillar: Pillar PSR X-TRA 1420 ,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Carbon Spoke: ECSR3.2SL,ECSR3.3SD,ECSR5.2SD Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
PHOTOS
GUESTBOOK
  • F
    visitor Fabrice BIHAY 2021-05-29
    Hello, I have 2 questions : 1. What would be the delay for shipping 2 rims (one SR45TC26 and one SR65TC26) ? And the shipping time to Belgium using a courier service to avoid paying custom taxes ? 2. Is there a difference in strength and stiffness between the STD and SL version ? If yes, to what extend ? Thanks in advance, Best regards, Fabrice

    EIE EIE Carbon:

    @Fabrice BIHAY Thanks for your inquiry ,here is Pretty,please see my replies below : Hello, I have 2 questions : 1. What would be the delay for shipping 2 rims (one SR45TC26 and one SR65TC26) ? And the shipping time to Belgium using a courier service to avoid paying custom taxes ? ---Our current manufacturing time is around 3 weeks ,and shipping to Belgium by taxes prepaid service will take around 2-3 weeks. 2. Is there a difference in strength and stiffness between the STD and SL version ? If yes, to what extend ? ---SL version is suggested for more lighter rider whose weight is less 100kg.Their strength would not have much difference with SD version.We never reduce the every leading area of strength such as spoke area or rim wall thickness .So you would not imagine any strength difference between these two version.Hope my information helps you. If any questions ,please feel free to contact us .We are happy to be of further assistance. Thanks EIECarbon

    2021-05-31

    REPLY
  • P
    visitor Patrick Berthou 2021-05-01
    Hello, I am interested by 1 SR45TC26 SL rim. Does it exist asymmetrically? What is the deadline to have it in France? Thank you cordially P Berthou

    EIE EIE Carbon:

    @Patrick Berthou Thanks for your inquiry. SR45TC26 this model is symmetrical profile,we do not have asymmetrical profile available. Do you want 1pcs asymmetrical 45mm deep?Do you need disc or non disc ?We have 45mm deep ,28mm outer wide asymmetrical profile like below : Do you think this profile work for you?The price is same as SR45TC26 . Our current production time for rim is around 3 weeks at least.And shipping to France by WXY (taxes prepaid) will take around 2-3 weeks .So you need to wait 6 weeks from purchasing to receive .Hope the time frame works for you. If further questions ,please feel free to contact us . Thanks EIECarbon

    2021-05-04

    REPLY
