SR40TC26 DISC CARBON ROAD RIMS AND CUSTOM WHEELS

700C 40mm deep 26mm wide clincher carbon disc rims and custom build wheels for road bikes

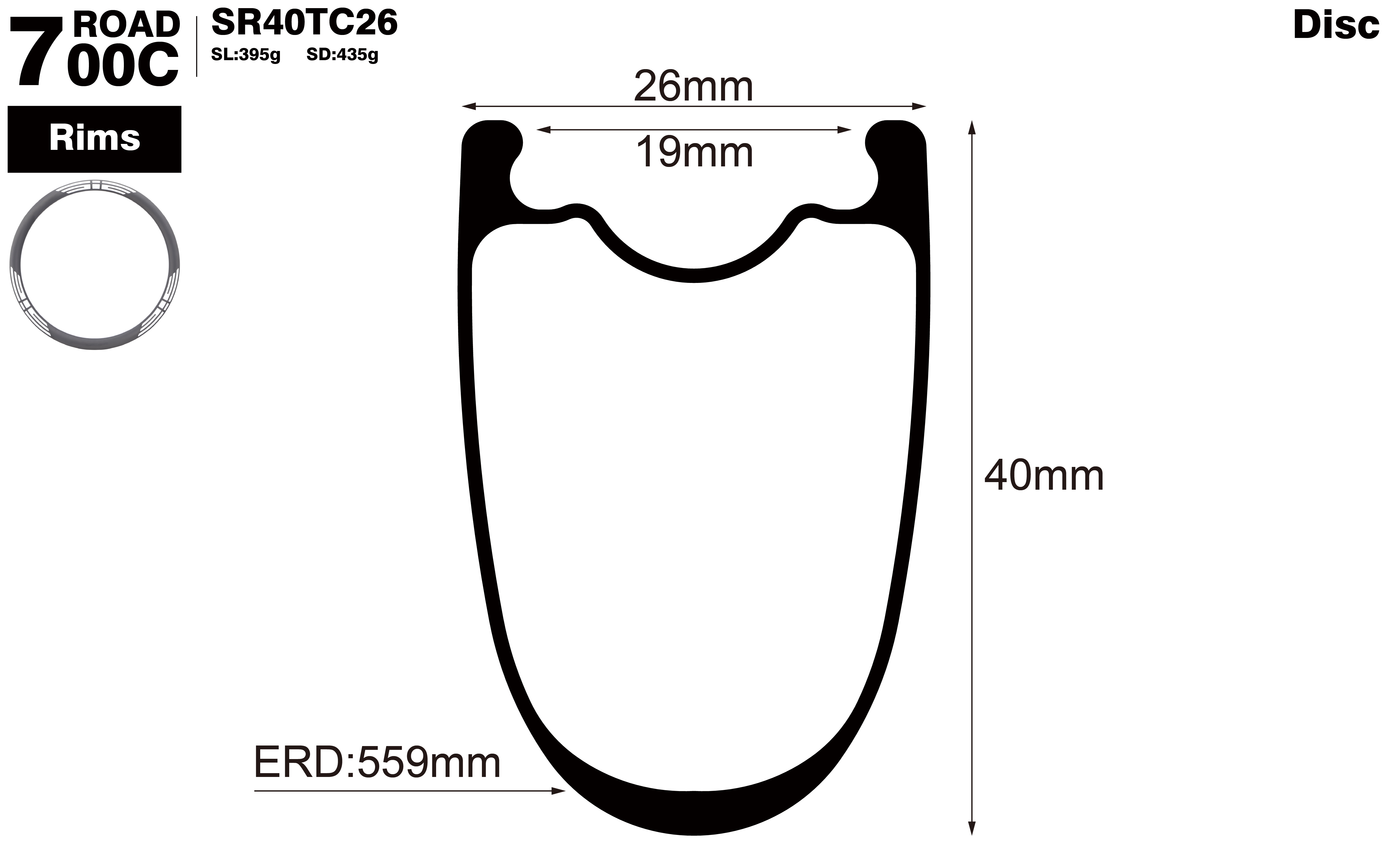

  • 700C-I19-D40-symmetric-road-bike-clincher-carbon-rims-profile-drawing

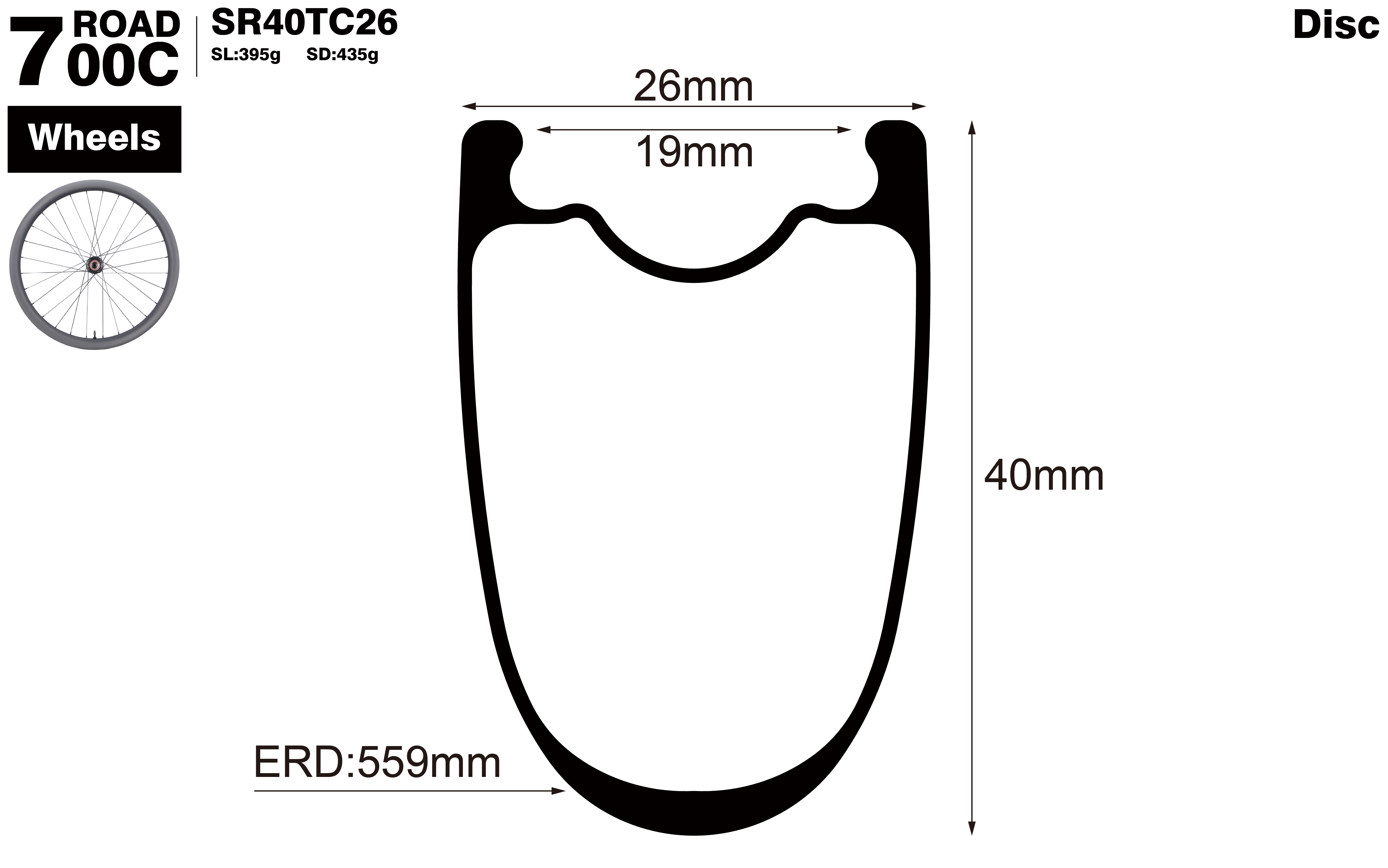

  • 700C-I19-D40-symmetric-road-bike-clincher-carbon-wheels-profile-drawing

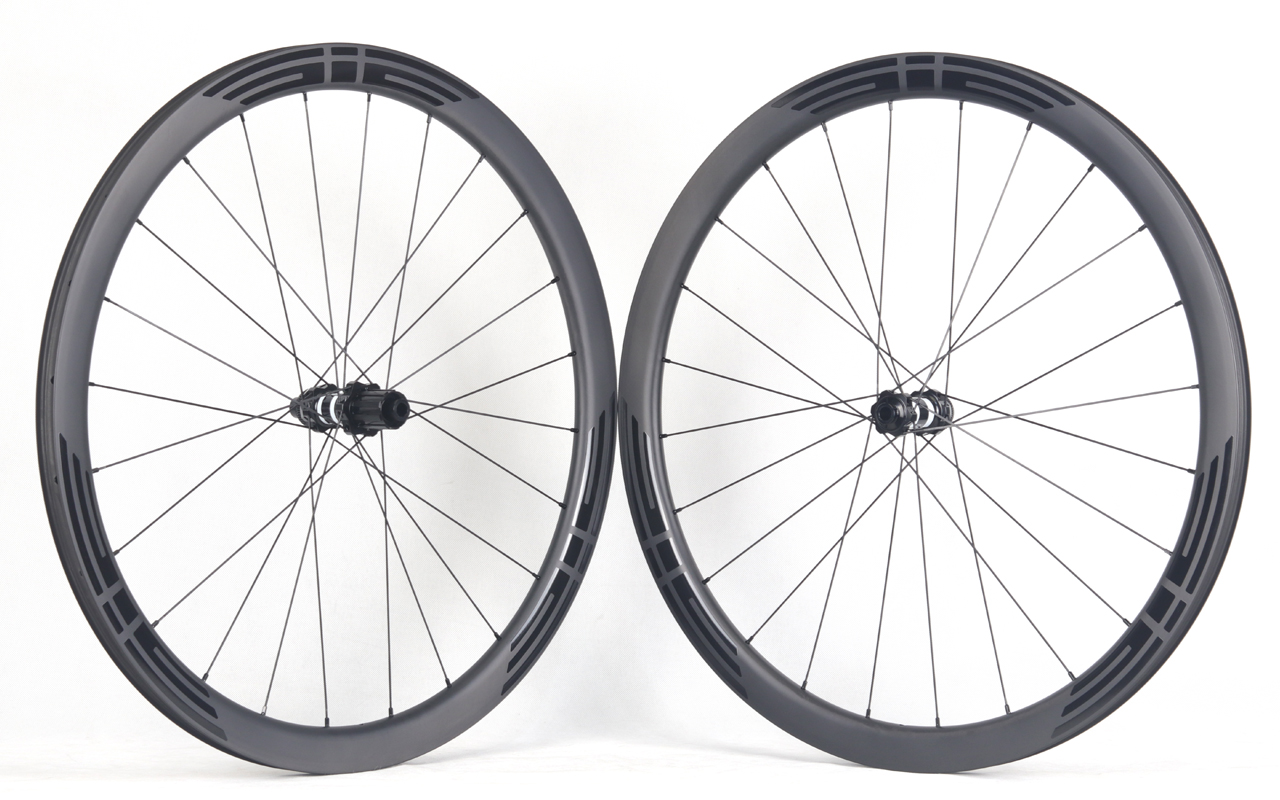

  • 700c-I19-D40-symmetric-road-bike-clincher-carbon-wheels

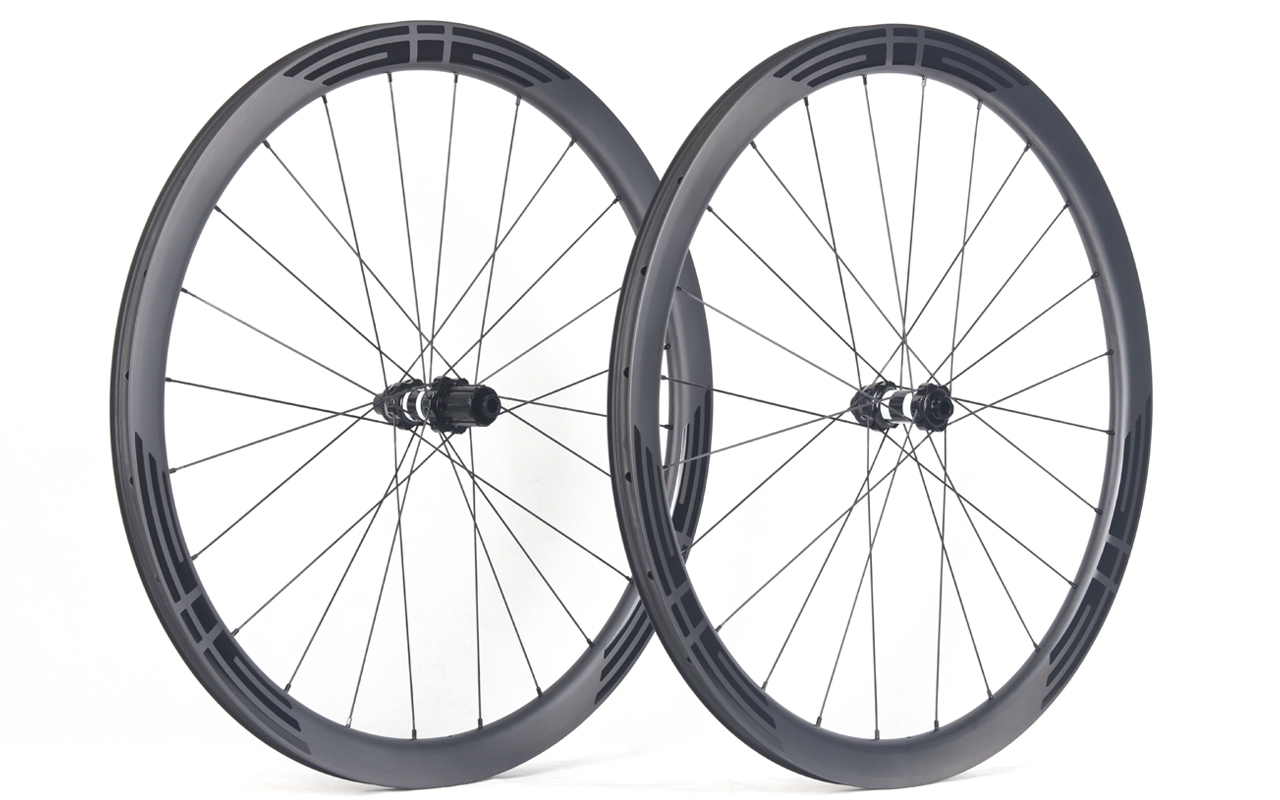

  • 700c-I19-D40-symmetric-road-bike-clincher-carbon-wheels-2

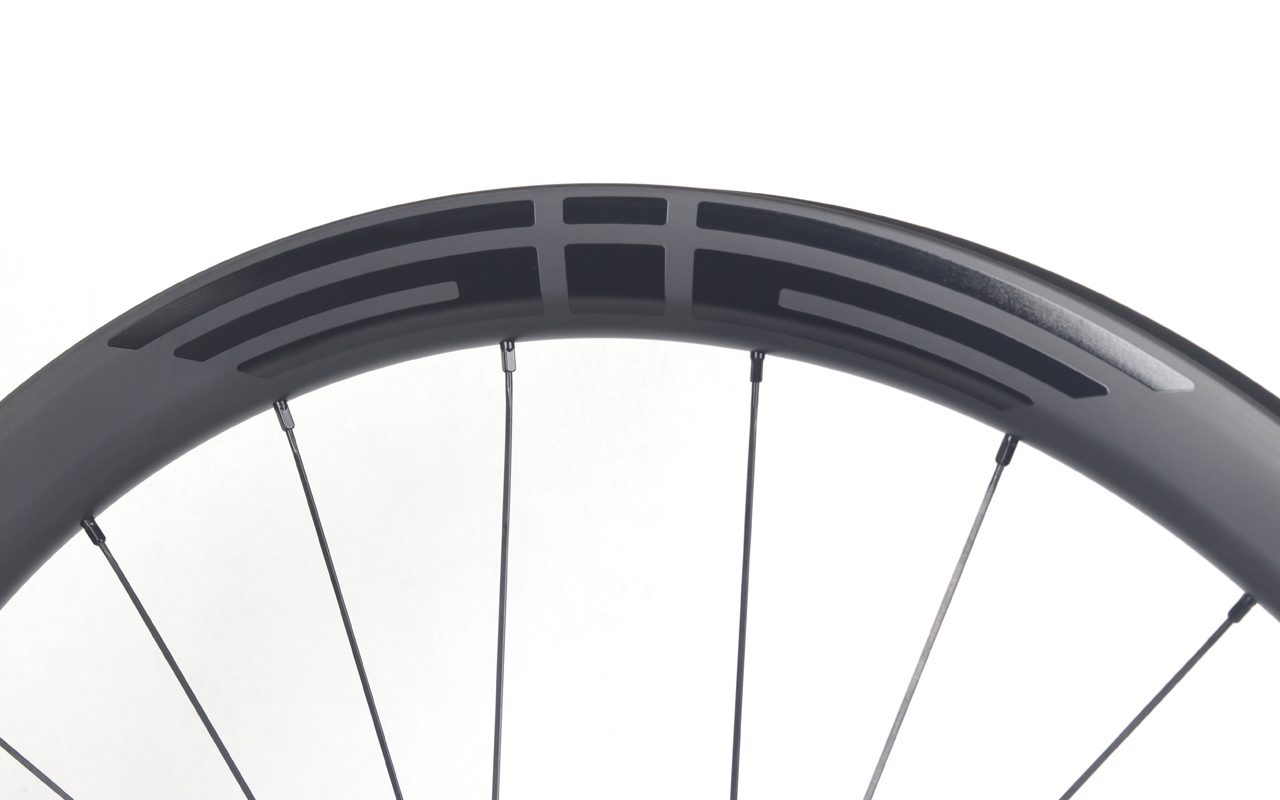

  • 700c-I19-D40-symmetric-road-bike-clincher-carbon-wheels-3
  • 700C-I19-D40-symmetric-road-bike-clincher-carbon-rims-profile-drawing
  • 700C-I19-D40-symmetric-road-bike-clincher-carbon-wheels-profile-drawing
  • 700c-I19-D40-symmetric-road-bike-clincher-carbon-wheels
  • 700c-I19-D40-symmetric-road-bike-clincher-carbon-wheels-2
  • 700c-I19-D40-symmetric-road-bike-clincher-carbon-wheels-3

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: SR40TC26 Warranty: 2 Years (From purchase date)
    Basic
    Size: 700C Material: Toray Carbon Fiber (T700,T800,T1000） Rim Type: Clincher W/Hooks Tubeless: Compatible ERD: 559mm(Not including nipple head dimension) Outer Width: 26mm Inner Width: 19mm Rim Depth: 40mm Offset: 0 mm(Symmetric) Spoke Hole Angle: ±9° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Brake System: Disc Version: SD:435±15g | SL:395±15g Hole Count: 16H | 18H | 20H | 21H | 24H | 28H | 32H | 36H | 0H | Custom Hole Drilling: 1:1 | 2:1 | G3 | Custom Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | Drain Hole: No Drain Holes |With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: SL:≤120kg,SD:≤135kg Tire Size: 23C~38C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended
    Explanation
    Standard Version: SD version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800 Ultra-Lightweight: UL version is constructed by fully carbon fiber T800 or blend of T800
    Application
    SD Version: Road Disc/Gravel/CX SL Version: Road Disc/Gravel/CX UL Version: Road Disc/Gravel/CX
    Hubs
    Models: DT SWISS 180 EXP, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D,Carbon-Ti X-Hub, Extralite, Tune,Bitex BX312F / BX312R,Bitex BX306F/R, Novatec D411SB / D412SB,EIE ER270,EIE ER315 Front Axle Size: 12*100mm,15*100mm,QR*100mm Rear Axle Size: 12*142mm, QR*135mm Driver Body: Shimano Road 11S,Sram XDR, Shimano MSR,Campy 11-12S,Campy N3W 13s
    Spokes
    Sapim: Sapim CX Ray,Sapim Super CX,Sapim D-light,Sapim Race,Sapim Laser,Sapim CX sprint etc. Pillar: Pillar PSR X-TRA 1420 ,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Carbon Spoke: ECSR3.2SL,ECSR3.3SD,ECSR5.2SD Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
PHOTOS
GUESTBOOK
  • A
    visitor Angel Contreras 2024-03-08
    Buenos días, me gustaría me hicieran llegar precio de 2 uds de Aros Rim brakes de 40 mm. Rueda delantera 20h t trasera 24h hock para cubierta clinker versión ligera. Con acabado UD brillo y pista de frenada reforzada. Me gustaría me pases presupuesto con envío a Madrid. España. SR40TC26 UD bright

    EIE EIE Carbon:

    @Angel Contreras Thanks for your inquiry. We have sent you a quotation via email, please kindly check it. If you have other requirements, please let us know. Thanks, EIECarbon

    2024-05-22

    REPLY
  • M
    visitor michal 2023-08-21
    Hello, what is maximal recommended weight of rider for SL rims?

    EIE EIE Carbon:

    @michal Thanks for your inquiry. We recommend max rider weight for the SR40TC26 SL version is 110 kg.. Could you tell us the rider's weight and cycling conditions? So we can give you a better recommendation. We have sent you an email to discuss more details, please check it. Thanks, EIECarbon

    2024-05-25

    REPLY
  • S
    visitor SANSAULT Quentin 2023-03-28
    Hi, I would like a quote for a pair of wheels 700C rim brake for tubes and the capacity to go tubeless, what would be the starting price for a delivery in France? I'm not looking at a deep profile as it would be mainly for climbing. Not sure about the details you would need but I'm just looking at what would the options be. Cheers for that, Quentin.

    EIE EIE Carbon:

    @SANSAULT Quentin Thank you so much for your inguiry. We have sent you an email to discuss more details, please check it out. We will assist you in finding the rightoptions and quote you. Thanks, ElECarbon

    2024-06-24

    REPLY
  • D
    visitor Dwight Cheu 2021-05-02
    Hi, Can you build the SR40TC26 SL rims (20/24, tubeless with hooks, no outer rim holes) with Carbon Ti Hubs (Shimano 11 speed) and CX Sapim straight pull spokes? What is the price and what is the shipping cost to New York, USA? Thank you.

    EIE EIE Carbon:

    @Dwight Cheu Thanks for your inquiry. The price has been sent to your email ,please kindly check. If further request ,please let us know . Thanks

    2021-05-04

    REPLY
