Product
Item No.: SR30TC26
Warranty: 2 Years (From purchase date)
Basic
Size: 700C
Material: Toray Carbon Fiber (T700,T800,T1000）
Rim Type: Clincher W/Hooks
Tubeless: Compatible

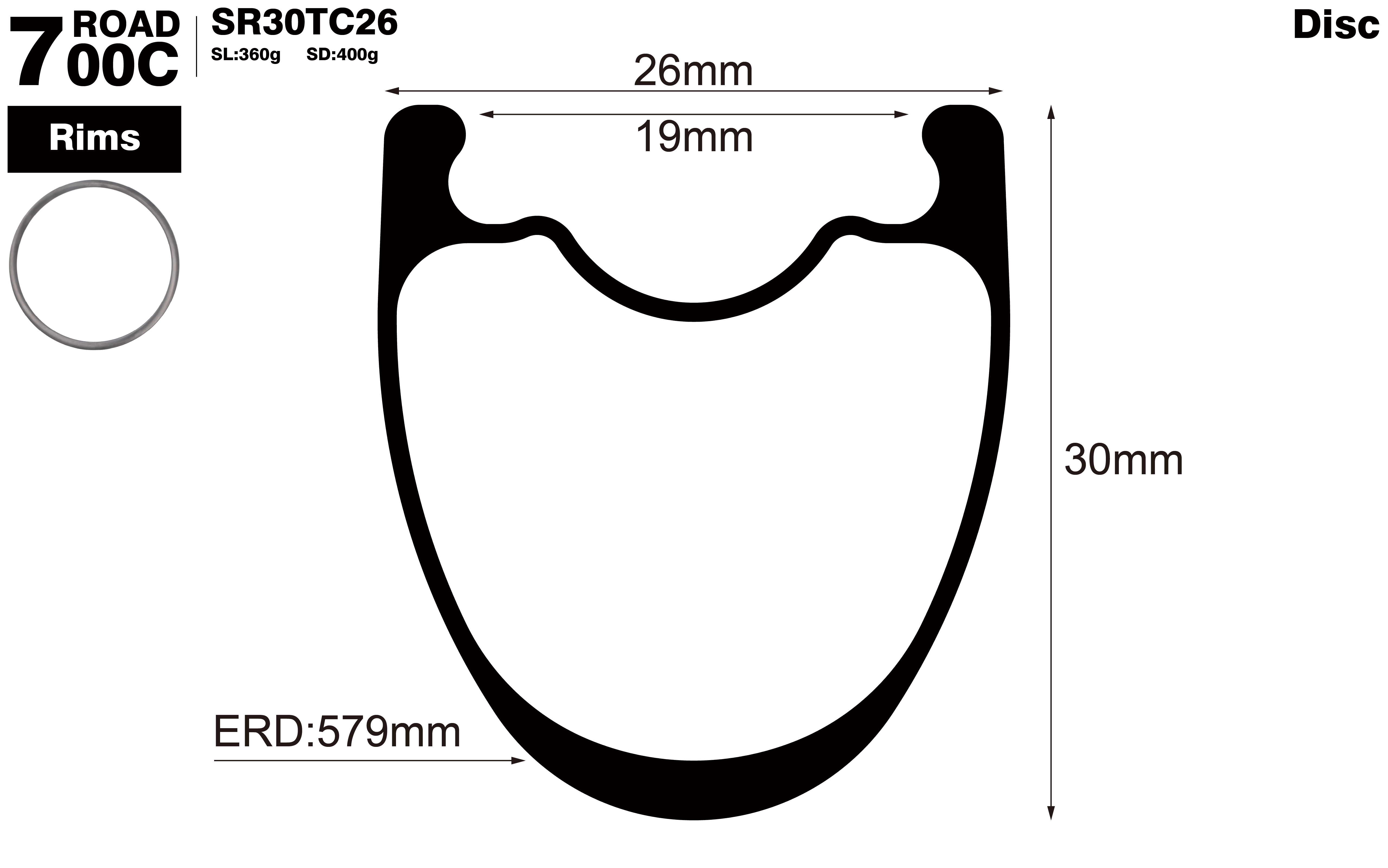

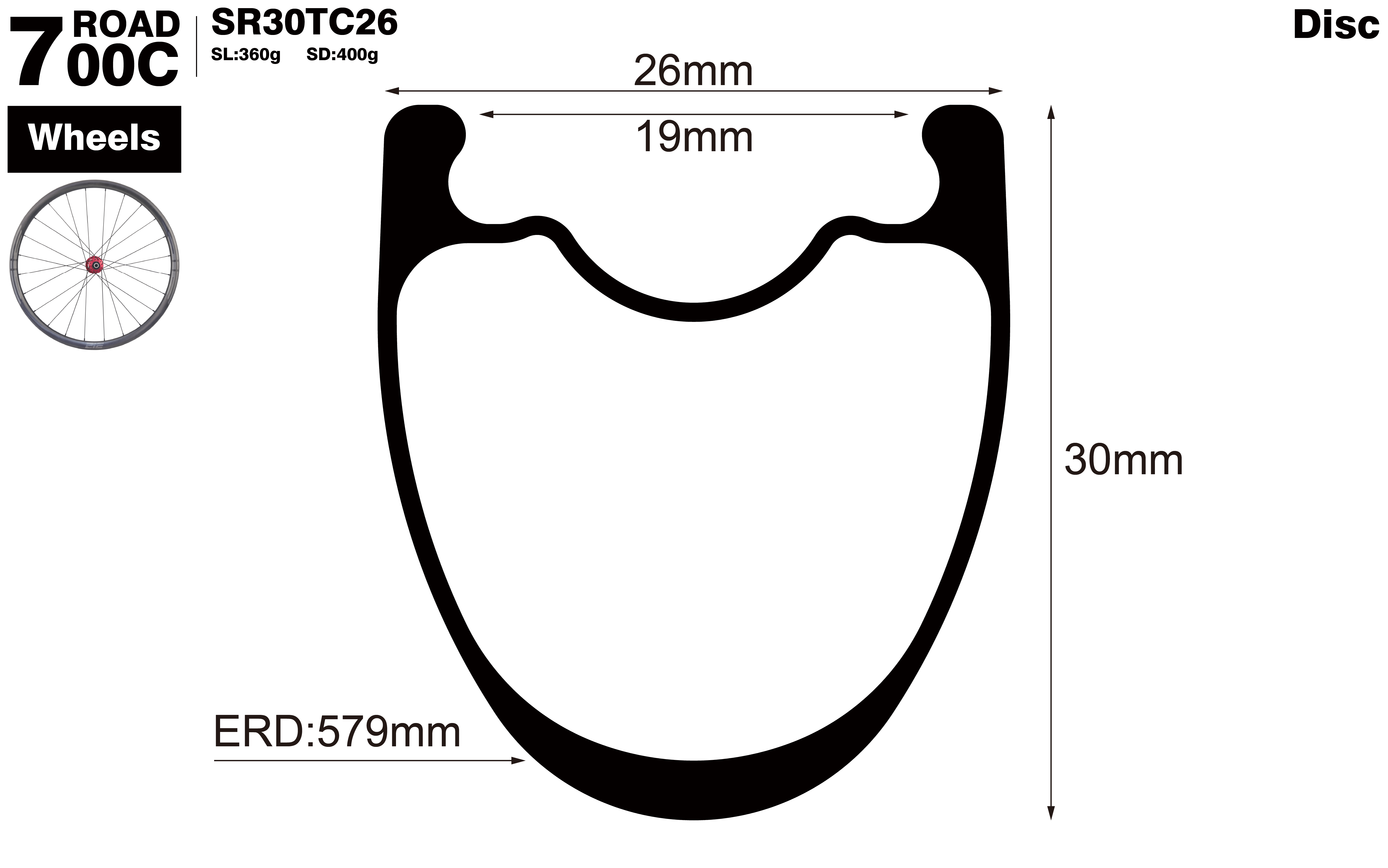

ERD: 579mm(Not including nipple head dimension)
Outer Width: 26mm
Inner Width: 19mm
Rim Depth: 30mm
Offset: 0 mm(Symmetric)
Spoke Hole Angle: ±9°
Spoke Hole Dia: 4.5mm
Valve Hole Dia: 6.5mm(Presta Valve)
Rim Bead Hole : 8.5mm
Customization
Brake System: Disc
Version: SD:400±15g | SL:360±15g | UL:320±15g(Only UD )
Hole Count: 16H | 18H | 20H | 21H | 24H | 28H | 32H | 36H | 0H | Custom
Hole Drilling: 1:1 | 2:1 | G3 | Custom
Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | 2:1-F Standard Holes Drilling | 2:1-T Standard Holes Drilling | G3 Standard Holes Drilling | | | 2:1-T UST Drilling | 2:1-F UST Drilling | 2:1-F Hidden Nipples Drilling |
Drain Hole: No Drain Holes | With Drain Holes |
Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom
Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom
Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
Recommendation
Weight Limit: UL:≤90kg,SL:≤120kg,SD:≤135kg
Tire Size: 23C~38C
Spoke Tension: 120~130kgf for drive side
Max Tire Pressure: Max 120psi recommended
Explanation
Standard Version: SD version is constructed by fully carbon fiber T700
Superlight : SL version is constructed by blend of carbon fiber T700+T800
Ultra-Lightweight: UL version is constructed by fully carbon fiber T800 or blend of T800
Application
SD Version: Road Disc/Gravel/CX
SL Version: Road Disc/Gravel/CX
UL Version: Road Disc/Gravel/CX
Hubs
Models: DT SWISS 180 EXP, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D,Carbon-Ti X-Hub, Extralite, Tune,Bitex BX312F / BX312R,Bitex BX306F/R, Novatec D411SB / D412SB,EIE ER270,EIE ER315
Front Axle Size: 12*100mm,15*100mm,QR*100mm
Rear Axle Size: 12*142mm, QR*135mm
Driver Body: Shimano Road 11S,Sram XDR, Shimano MSR,Campy 11-12S,Campy N3W 13s
Spokes
Sapim: Sapim CX Ray,Sapim Super CX,Sapim D-light,Sapim Race,Sapim Laser,Sapim CX sprint etc.
Pillar: Pillar PSR X-TRA 1420 ,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick
Carbon Spoke: ECSR3.2SL,ECSR3.3SD,ECSR5.2SD
Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
Nipples
Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass
Pillar: Aluminum Black,Brass Black
Note
Valve Kits: Provided if ordered
Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
