Item No.: S650BC22D25 Warranty: 2 Years (From purchase date)

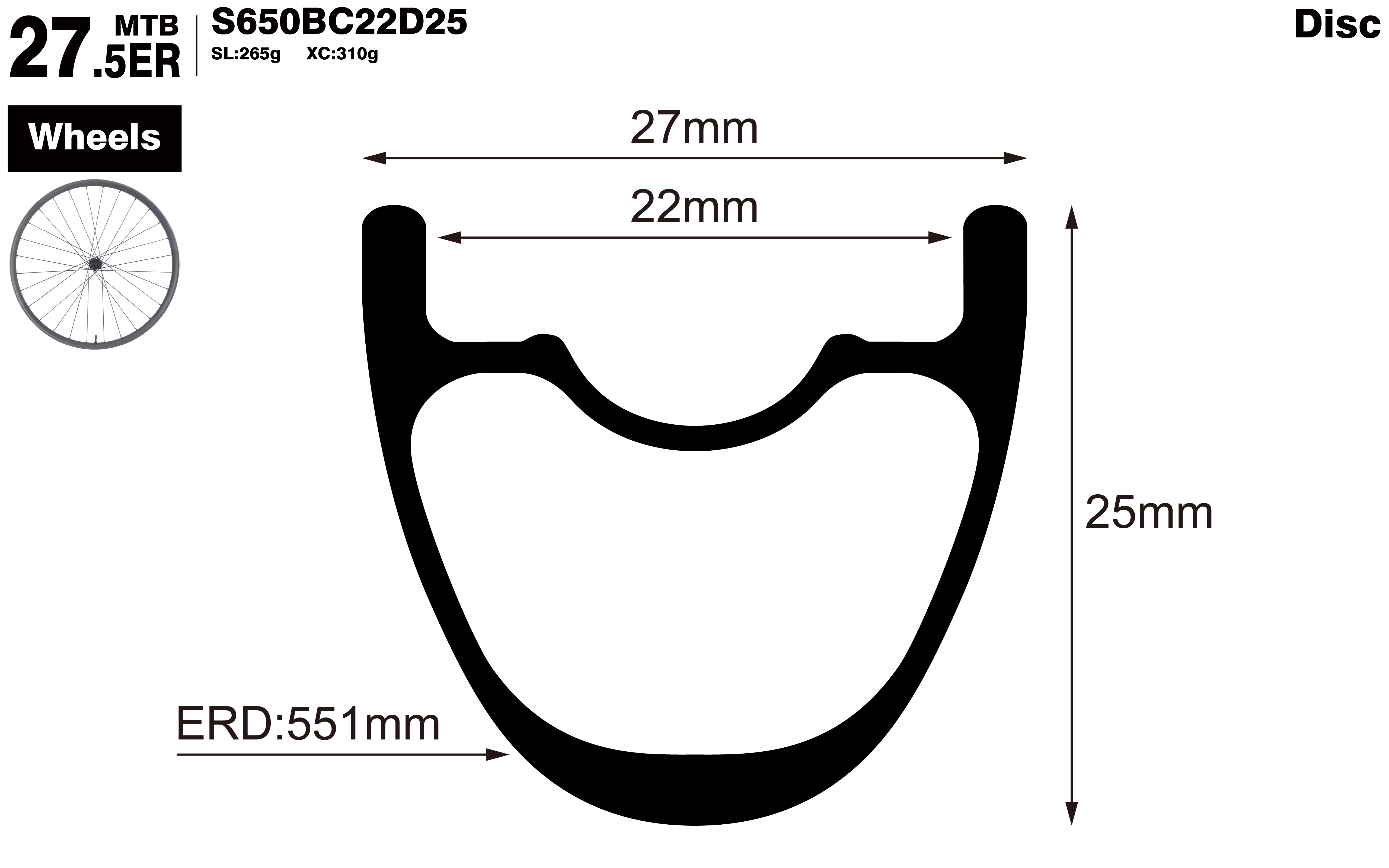

Size: 27.5er/650B Material: Toray Carbon Fiber (T700,T800) Rim Type: Clincher W/Hookless Tubeless: Compatible ERD: 551mm(Not including nipple head dimension) Outer Width: 27mm Inner Width: 22mm Rim Depth: 25m Offset: 0mm(symmetric) Spoke Hole Angle: ±6° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm

Version: XC:310±15g | SL:265±15g Hole Count: 16H | 18H | 20H | 21H | 24H | 28H | 32H | 36H | 0H | Custom Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes Drilling Pattern: 1:1 | 2:1 | G3 | Custom Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker

Weight Limit: SL:≤100kg,XC:≤110kg Tire Size: 1.9''~2.3'' Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 40psi recommended

Standard Version: XC version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800

Cross Country: SL/XC

Models: DT SWISS 180 EXP,DT SWISS 240 EXP,DT SWISS 350,Bitex BX211F/R ,Bitex BX212F/R,Bitex BX213F/R,Extralite ,Carbon Ti ,Hope Pro 5,Tune,Novatec,EIE EM300,EIE EM285 Front Axle Size: 15*110mm BOOST,15*110 Torque,15*110 RS-1,15*100mm,15*100 Torque,20*110mm DH BOOST,20*110 Old DH,Lefty 2.0,Lefty1.0,QR*100mm Rear Axle Size: 12/142mm,12/148mm BOOST,12/157mm Super BOOST,12*150mm,QR/135mm,Single Spee Driver Body: Shimano MTB 10/11S,Sram XD,Shimano Micro Spline 12sp,Shimano MTB 10/11S Alloy,Sram XD Alloy,Shimano Micro Spline 12sp Alloy

Sapim: Sapim CX Ray,Sapim D-light,Sapim Race,Sapim Laser,Sapim Leader,Sapim CX sprint etc. Pillar: Pillar 1420,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Berd : Berd Polylight in Black,Berd PolyLight in White Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round

Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black

Valve Kits: None/Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
