S26C23D22 CARBON XC RIMS AND CUSTOM WHEELS

26er-I23-D22 symmetric superlight carbon fiber mtb rims and custom XC wheels tubeless compatible

  • 26er-I23-D22-symmetric-mountain-bike-XC-carbon-rims-profile-drawing

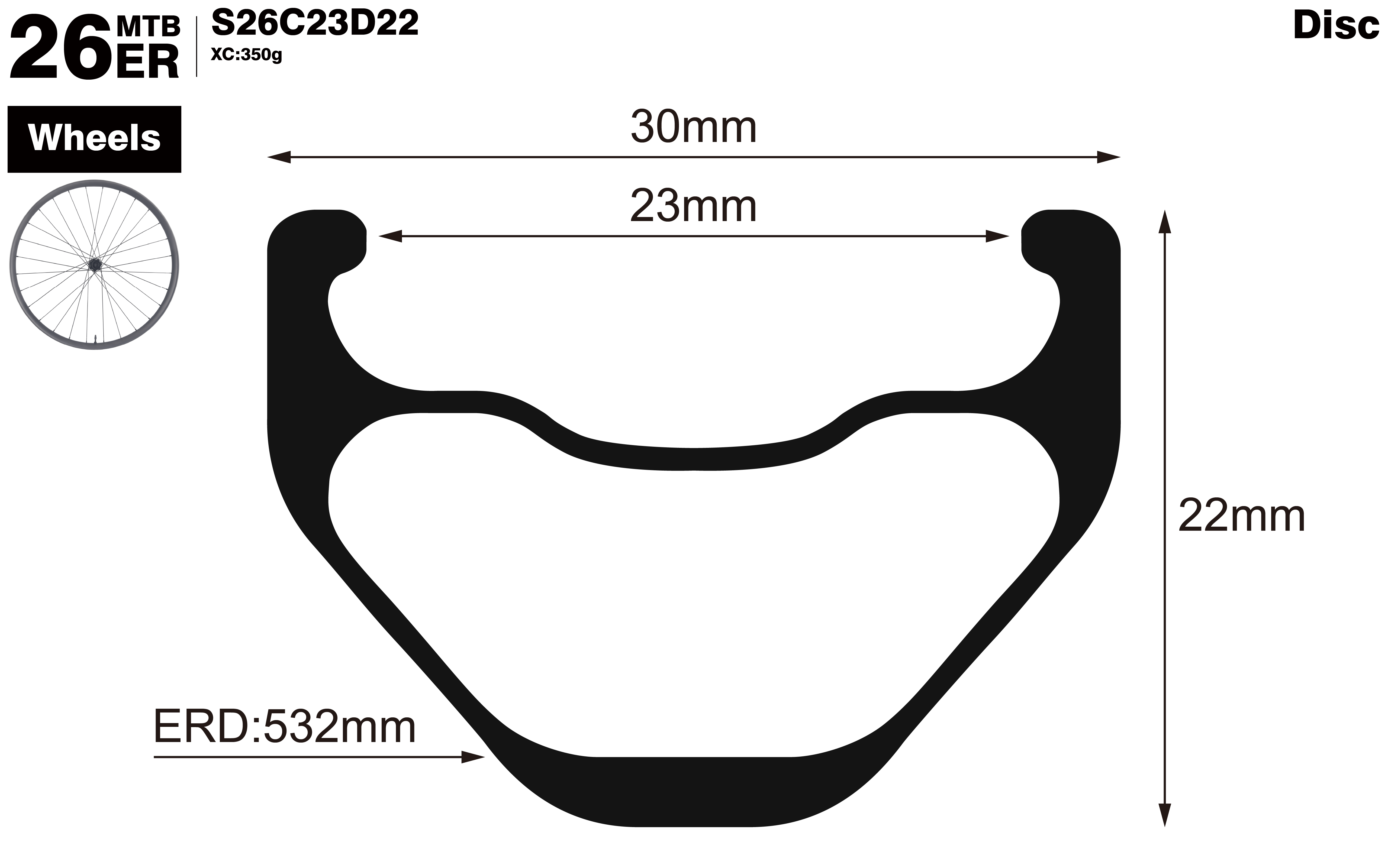

  • 26er-I23-D22-symmetric-mountain-bike-XC-carbon-wheels-profile-drawing
  • 26er-I23-D22-symmetric-mountain-bike-XC-carbon-rims-profile-drawing
  • 26er-I23-D22-symmetric-mountain-bike-XC-carbon-wheels-profile-drawing

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: S26C23D22 Warranty: 2 Years (From purchase date)
    Basic
    Size: 26er Material: Toray Carbon Fiber (T700,T800) Rim Type: Clincher W/Hooks Tubeless: Compatible ERD: 532mm(Not including nipple head dimension) Outer Width: 30mm Inner Width: 23mm Rim Depth: 22m Offset: 0mm(symmetric) Spoke Hole Angle: ±6° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Version: XC:350±15g Hole Count: 16H | 18H | 20H | 21H | 24H | 28H | 32H | 36H | 0H | Custom Hole Type: Standard Holes Drilling Pattern: 1:1 | 2:1 | G3 | Custom Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: XC:≤100kg Tire Size: 1.9''~2.4'' Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 40psi recommended
    Explanation
    Standard Version: XC version is constructed by fully carbon fiber T700
    Application
    Cross Country: XC
    Hubs
    Models: DT SWISS 180 EXP,DT SWISS 240 EXP,DT SWISS 350,Bitex BX211F/R ,Bitex BX212F/R,Bitex BX213F/R,Extralite ,Carbon Ti ,Hope Pro 5,Tune,Novatec,EIE EM300,EIE EM285 Front Axle Size: 15*110mm BOOST,15*110 Torque,15*110 RS-1,15*100mm,15*100 Torque,20*110mm DH BOOST,20*110 Old DH,Lefty 2.0,Lefty1.0,QR*100mm Rear Axle Size: 12/142mm,12/148mm BOOST,12/157mm Super BOOST,12*150mm,QR/135mm,Single Spee Driver Body: Shimano MTB 10/11S,Sram XD,Shimano Micro Spline 12sp,Shimano MTB 10/11S Alloy,Sram XD Alloy,Shimano Micro Spline 12sp Alloy
    Spokes
    Sapim: Sapim CX Ray,Sapim D-light,Sapim Race,Sapim Laser,Sapim Leader,Sapim CX sprint etc. Pillar: Pillar 1420,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Berd : Berd Polylight in Black,Berd PolyLight in White Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: None/Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
GUESTBOOK
  • F
    visitor Fabrice 2024-11-17
    Can those rims be used with rim brakes? Thanks

    EIE EIE Carbon:

    @Fabrice Hi Fabrice, Generally we don't offer rim brakes option for MTB rims cause generally mtb rims are with low profile and its curved sidewall don't provide enough flat surface for a brake track. We have rim brake options for road rims.Kindly let us know if you are interested. Thanks, EIE Carbon

    2026-01-30

    REPLY
  • O
    visitor Olivier Brou 2022-08-23
    Hi, I am considering to change the wheels of MTB Giant Anthem 26' by carbon wheels Can you prepare wheels whith QR on the rear axle ? (front on boost 15x100) In this case can you send me a quotation based on S26C23D22 (UD) & with Bitex Hub and Center lock & Pillar 1423 Best regards

    EIE EIE Carbon:

    @Olivier Brou We sent the available options and our recommendation to you by email,please check Thanks EIECarbon

    2022-08-26

    REPLY
  • A
    visitor Aubyii Rekieh 2021-03-29
    Hi, I am looking to buy two sets of wheels, one for my wife's 26er and one for my 27.5 boost. What do you recommend? My wife's will be lightly ridden, my 27.5er will potentially be ridden harder but nothing crazy. I am thinking something AM oriented would be good. Also, do you guys provide custom paint etc? Thanks

    EIE EIE Carbon:

    @Aubyii Rekieh Thanks for the inquiry. Before my recommendation,could you please advise more details information?So I can do suitable recommendations: What wide do you look for?And what tire size do you plan to use? We can provide custom paint .Do you want full colored paint?If yes ,please advise us the pantone color code ,so we can match accordingly. Thanks EIE Carbon

    2021-03-30

    REPLY
