Product
Item No.: F26C95D25
Warranty: 2 Years (From purchase date)
Basic
Size: 26er
Material: Toray Carbon Fiber (T700,T800)
Rim Type: Clincher W/Hookless
Tubeless: Compatible

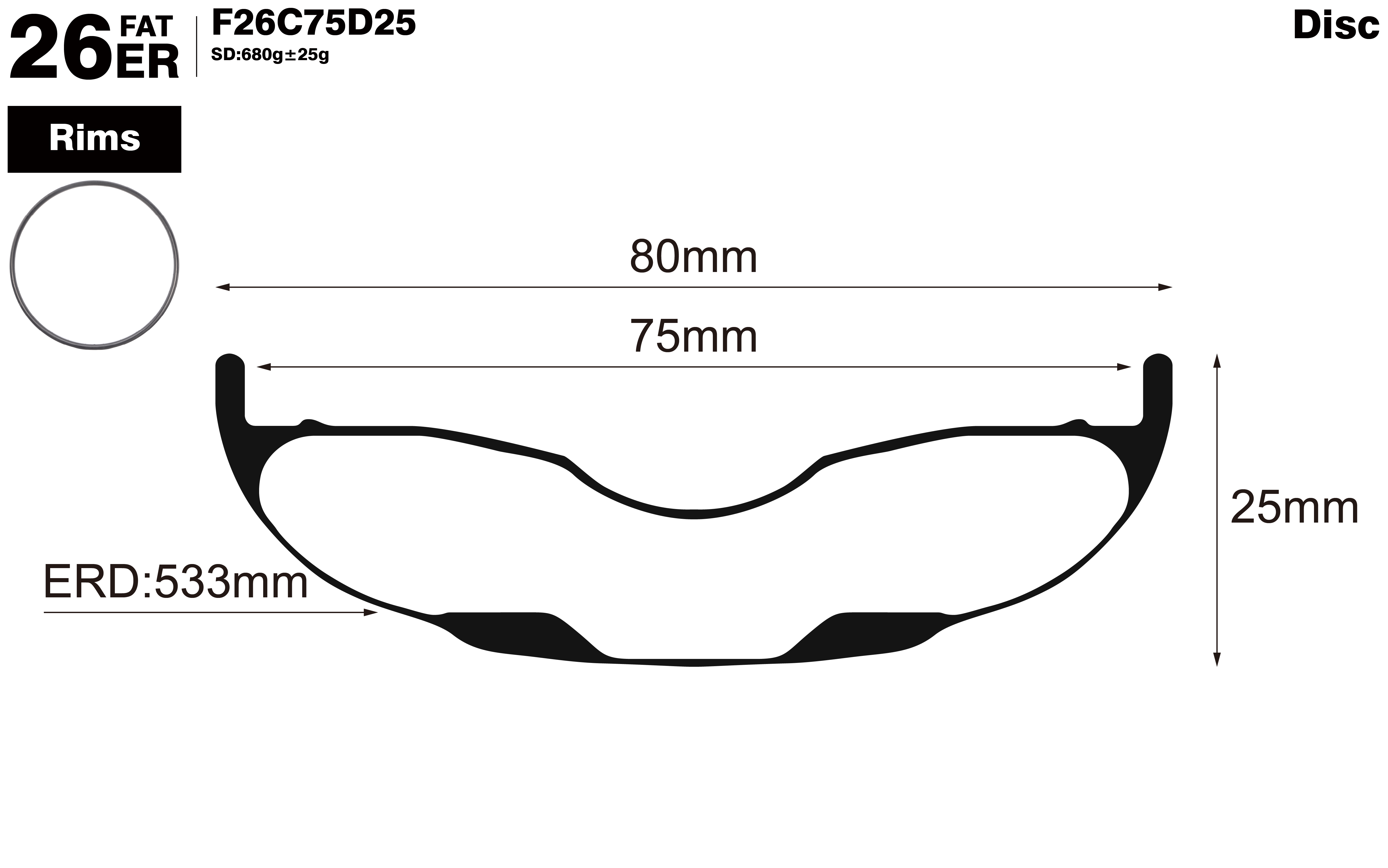

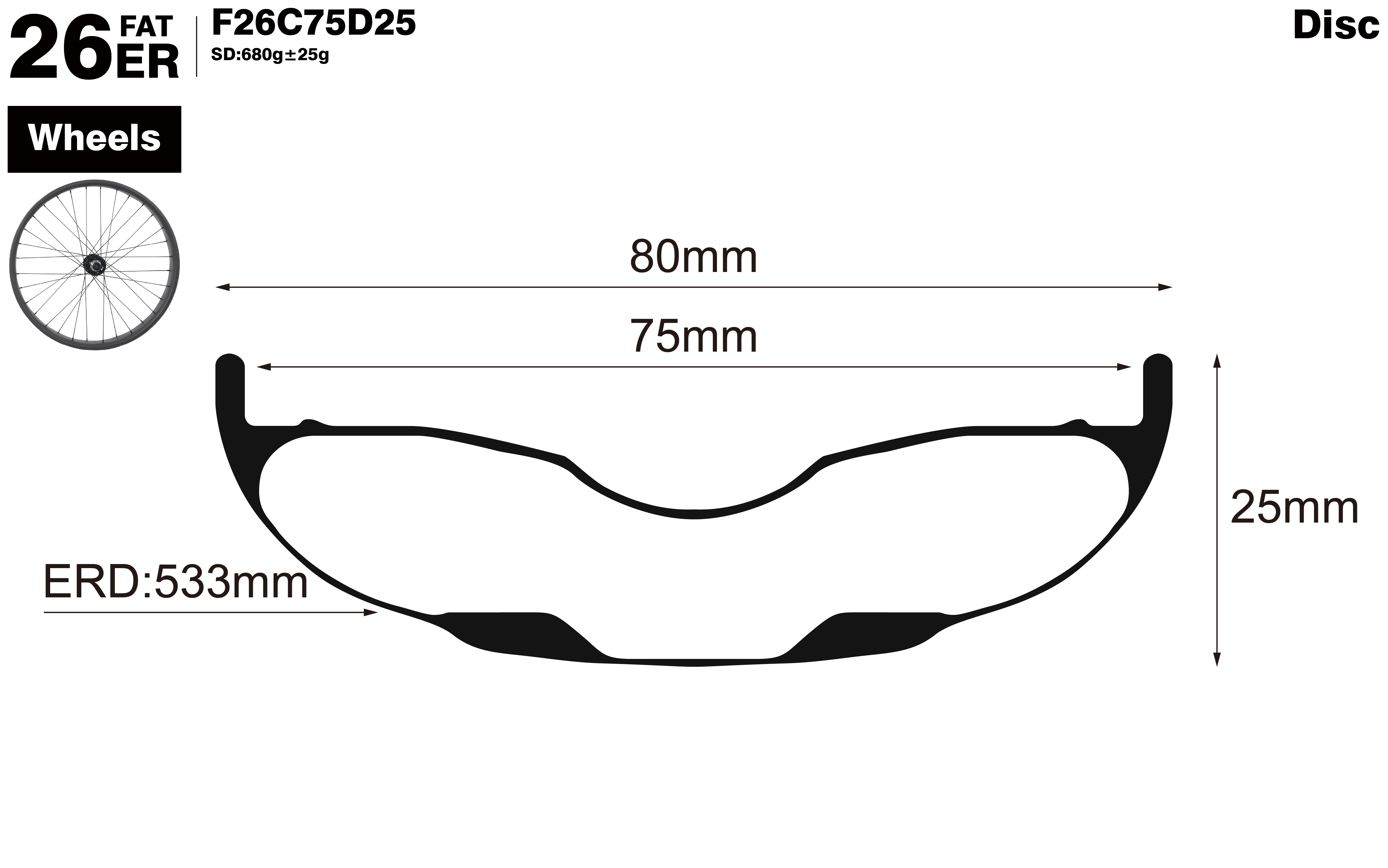

ERD: 533mm(Not including nipple head dimension)
Outer Width: 80mm
Inner Width: 75mm
Rim Depth: 25mm
Profile: 0 mm(symmetric)
Spoke Hole Angle: ±6°
Spoke Hole Dia: 4.5mm
Valve Hole Dia: 6.5mm(Presta Valve)
Rim Bead Hole : 8.5mm
Customization
Version: SD:680:±25g
Hole Count: 32H | 36H | 24H | 28H | 16H | 18H | 20H | 21H | Custom | 0H
Hole Type: Staggered Drilling | Offset Drilling | Dual Drilling |
Drain Hole: No Drain Holes | With Drain Holes |
Weave: UD | 3K | 12K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom
Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Matte Gold | Custom
Decal: None | Black Glossy | White | Oil Slick | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | Laser | Matte | Custom | Sticker
Recommendation
Weight Limit: Max 120kg
Tire Size: 3.8"~5.0"
Spoke Tension: 105~120kgf for drive side
Max Tire Pressure: Max 60psi recommended
Explanation
Standard Version: Standard version is constructed by fully carbon fiber T700
Application
Intended Use: Sand, Snow, Single Track
Hubs
Models: DT SWISS 350 Big Ride,Bitex FB MTF/R
Front Axle Size: 15*150mm,20*150mm,12*150mm,15*135mm,12*135mm,20*135mm
Rear Axle Size: 12*170mm,12*190mm,12*177mm,12*197mm
Driver Body: Shimano MTB 10/11S, Sram XD, Shimano Micro Spline, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline Alloy
Spokes
Sapim: Sapim CX Ray,Sapim D-light,Sapim Race,Sapim Laser,Sapim Leader,Sapim CX sprint etc.
Pillar: Pillar 1420,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick
Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
Nipples
Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass
Pillar: Aluminum Black,Brass Black
Note
Valve Kits: Provided if ordered
Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
