Item No.: B349-S16D40TC26 Warranty: 2 Years (From purchase date)

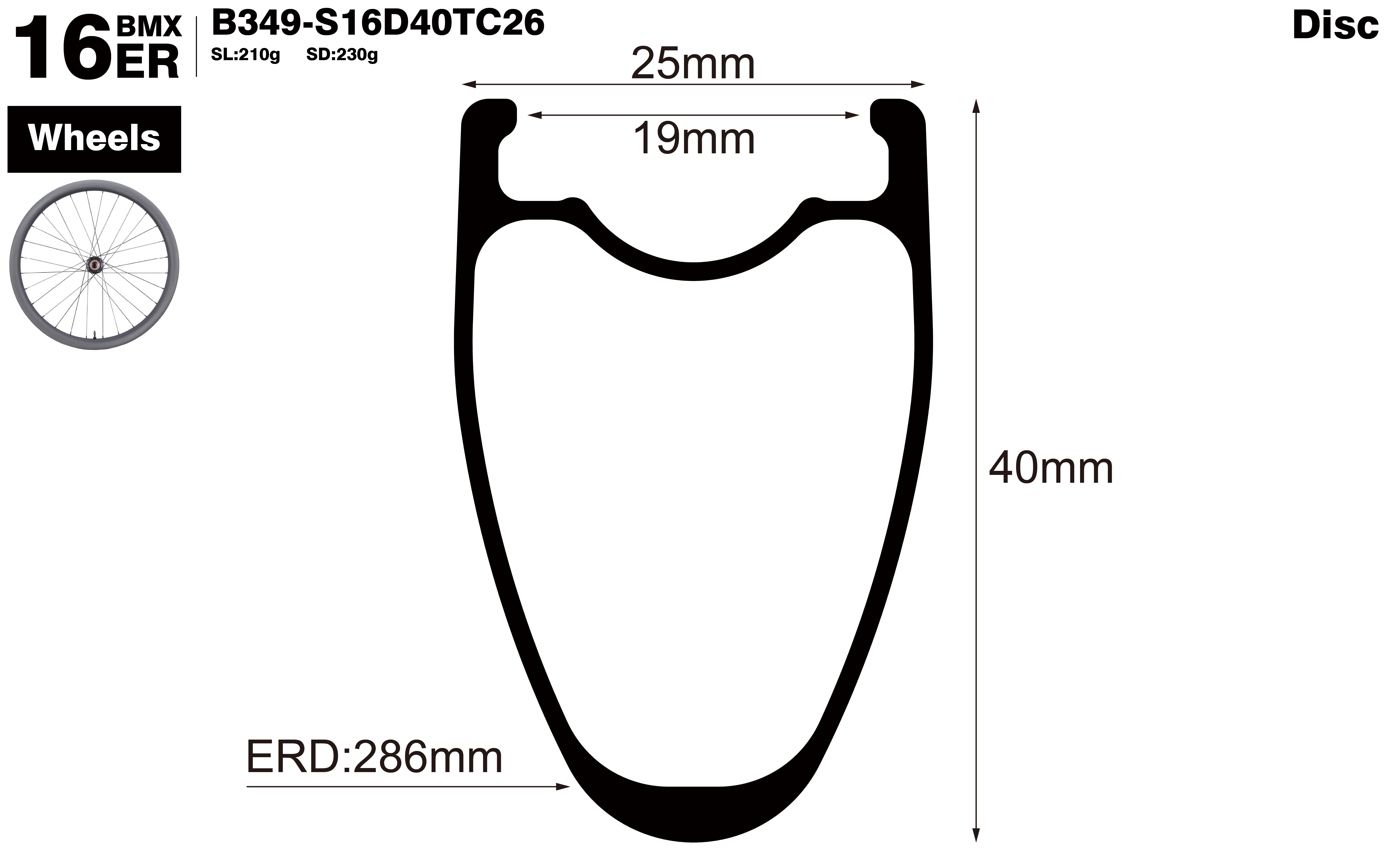

Size: 16er Material: Toray Carbon Fiber (T700,T800） Rim Type: Clincher W/Hooks Tubeless: Compatible ERD: 286mm(Not including nipple head dimension) BSD: 349mm Outer Width: 26mm Inner Width: 19mm Rim Depth: 40mm Offset: 0 mm(Symmetric) Spoke Hole Angle: ±12° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm

Brake System: Disc | Non Disc/C-grooved Brake | Non Disc/AC3 grooved brake Version: SD:240±10g | SL:210±10g Hole Count: 24H | 28H | 32H | 16H | 18H | 20H | 21H | 36H | Custom | 0H Drilling Pattern: 1:1 Drilling | 2:1-T Drilling | 2:1-F Drilling | G3 Drilling | Custom Drilling Hole Type: Standard Holes | Staggered Drilling | Without Rim Bead Holes(Tubeless Ready) | Centered Line Drilling | Offset Drilling | Dual Drilling | Internal Nipple Holes | 2:1-F UST Drilling | 2:1-F Hidden Nipples Drilling | 2:1-F Standard Holes Drilling | 2:1-T US Drain Hole: No Drain Holes | Drain Holes | Weave: UD | 3K | 12K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Matte Gold | Custom Decal: None/Black/White/Oil Slick/Red/Blue/Green/Orange/All Pantone Color/Lasered /

Weight Limit: ≤100kg Tire Size: 23~38C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended

Standard Version: SD version is constructed by fully carbon fiber T700 Superlight Version: SL version is constructed by blend of carbon fiber T700 and T800

SD Version: BMX SL Version: BMX

Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
