ARG50TC30 CARBON GRAVEL RIMS AND CUSTOM WHEELS

700C 50mm deep 30mm wide asymmetric carbon rims and custom clincher wheels for gravel bicycles tubeless compatible

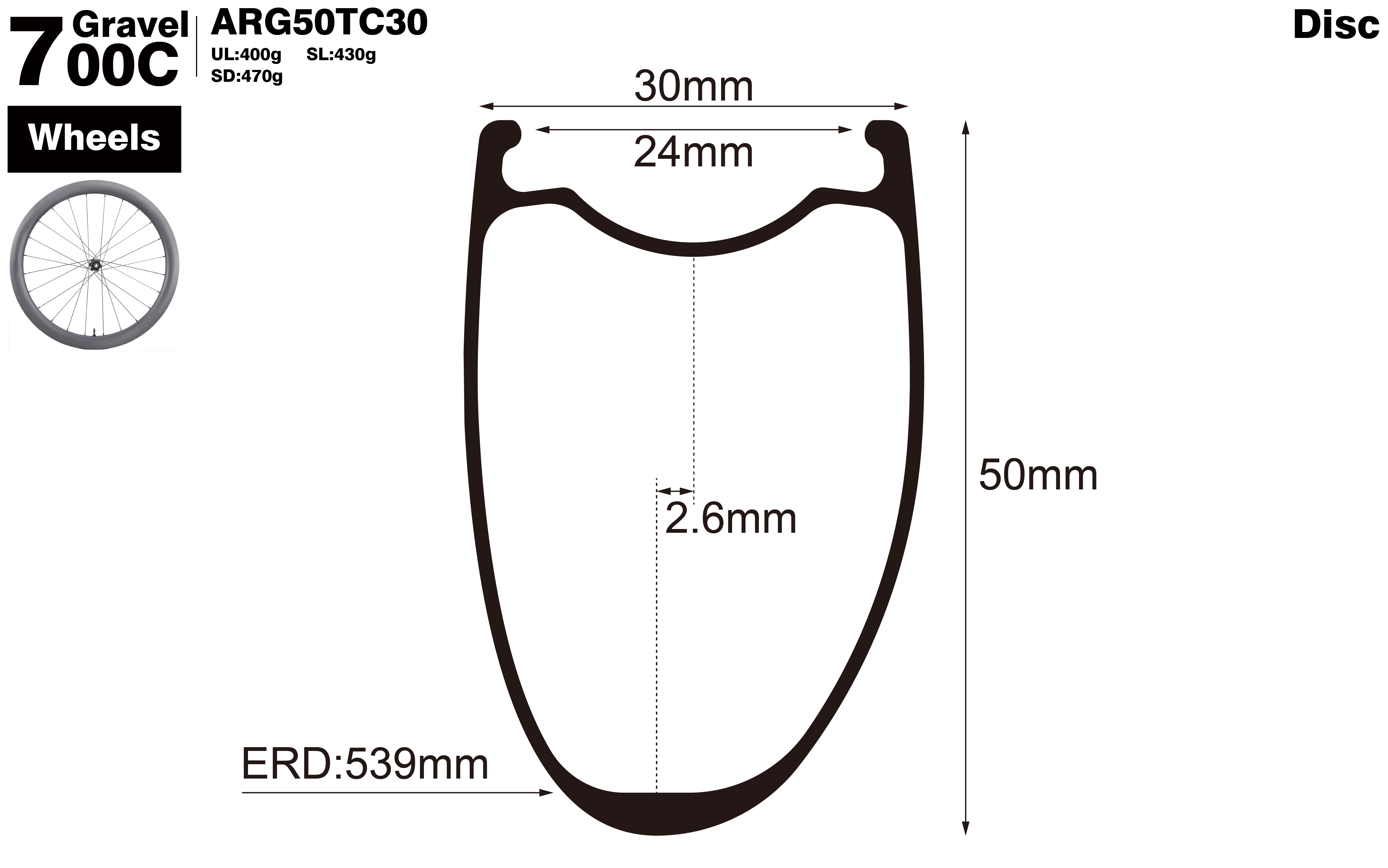

  • 700C-I24-D50-asymmetric-road-bike-gravel-carbon-rims-profile-drawing
  • 700C-I24-D50-asymmetric-road-bike-gravel-carbon-wheels-profile-drawing
  • 700C-I24-D50-asymmetric-road-bike-gravel-carbon-rims-profile-drawing
  • 700C-I24-D50-asymmetric-road-bike-gravel-carbon-wheels-profile-drawing

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: ARG50TC30 Warranty: 2 Years (From purchase date)
    Basic
    Size: 700C Material: Toray Carbon Fiber (T700,T800,T1000） Rim Type: Clincher W/Hooks Tubeless: Compatible ERD: 539mm(Not including nipple head dimension) Outer Width: 30mm Inner Width: 24mm Rim Depth: 50mm Offset: 2.6 mm Spoke Hole Angle: ±9° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Brake System: Disc Version: SD:470±15g | SL:430±15g | UL:400±15g(Only UD ) Hole Count: 24H | 28H | 32H | 16H | 18H | 20H | 21H | 36H | 0H | Custom Drilling Pattern: 1:1 | 2:1 | G3 | Custom Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom | Matte Gold Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: UL:≤90kg,SL:≤120kg,SD:≤135kg Tire Size: 23C~43C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended
    Explanation
    Standard Version: SD version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800 Ultra-Lightweight: UL version is constructed by fully carbon fiber T800 or blend of T800
    Application
    SD Version: Road Disc/Gravel/CX SL Version: Road Disc/Gravel/CX UL Version: Road Disc/Gravel/CX
    Hubs
    Models: DT SWISS 180 EXP, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D,Carbon-Ti X-Hub, Extralite, Tune,Bitex BX312F / BX312R,Bitex BX306F/R, Novatec D411SB / D412SB,EIE ER270,EIE ER315 Front Axle Size: 12*100mm,15*100mm,QR*100mm Rear Axle Size: 12*142mm, QR*135mm Driver Body: Shimano Road 11S,Sram XDR, Shimano MSR,Campy 11-12S,Campy N3W 13s
    Spokes
    Sapim: Sapim CX Ray,Sapim Super CX,Sapim D-light,Sapim Race,Sapim Laser,Sapim CX sprint etc. Pillar: Pillar PSR X-TRA 1420 ,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Carbon Spoke: ECSR3.2SL,ECSR3.3SD,ECSR5.2SD Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
GUESTBOOK
  • G
    visitor Giuseppe Iovinelli 2024-05-04
    Hi, a friend of mine and already your client, Mr. Brio Albano, advised me to ask you for a quote for road wheels; I would be interested in a pair of tubeless ready wheels, T800 carbon, 21mm internal width, 50mm profile height, DT Swiss 240 or 180 hubs (we ask for a double quote with 240 and 180), 24 spokes, without tape, which fit under the total weight of 1.3kg.

    EIE EIE Carbon:

    @Giuseppe Iovinelli Thanks for your inquiry. Please check the following two options: Option 1: ARG50TC28 UL +DT SWISS 240 12/100,12/142 ,center lock ,HG ,36T EXP +Sapim cx ray , price :1111usd one pair , estimated weight :1.366kg Option 2: ARG50TC28 UL +DT SWISS 180 12/100,12/142 ,center lock ,HG ,36T EXP +Sapim cx ray , price :1451usd one pair , estimated weight :1.345kg But it seems that the weight of the above two options all exceed 1.3kg. We have sent you an email to recommend other better options for you, please check it out. Thanks, EIECarbon

    2024-05-21

    REPLY
