ARG45TC30H HOOKLESS WIDE CARBON GRAVEL RIMS AND CUSTOM WHEELS

700C 45mm deep 30mm wide hookless asymmetric carbon rims and custom clincher wheels for gravel bicycles tubeless compatible

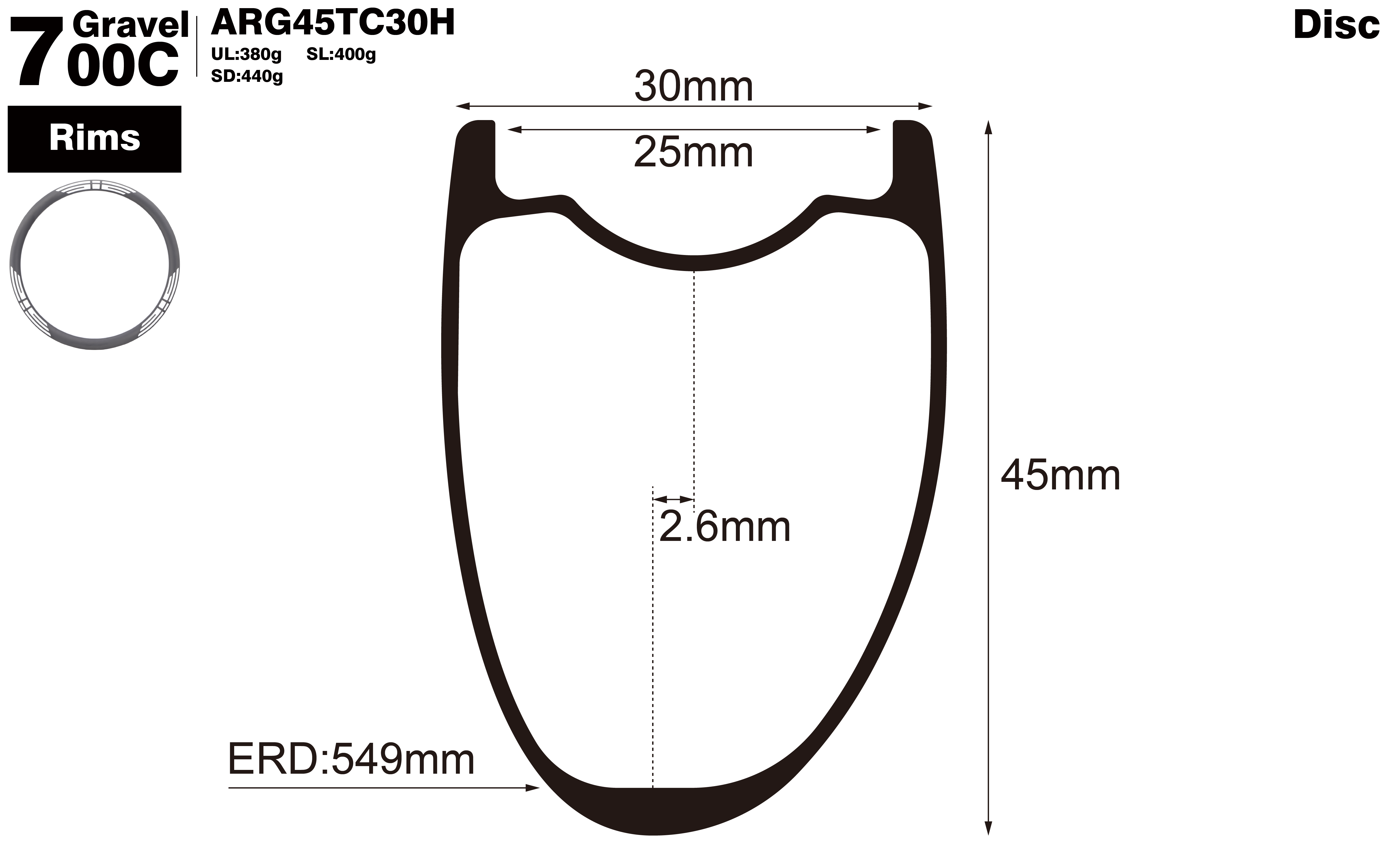

  • 700C-I25-D45-asymmetric-road-bike-hookless-gravel-carbon-rims-profile-drawing

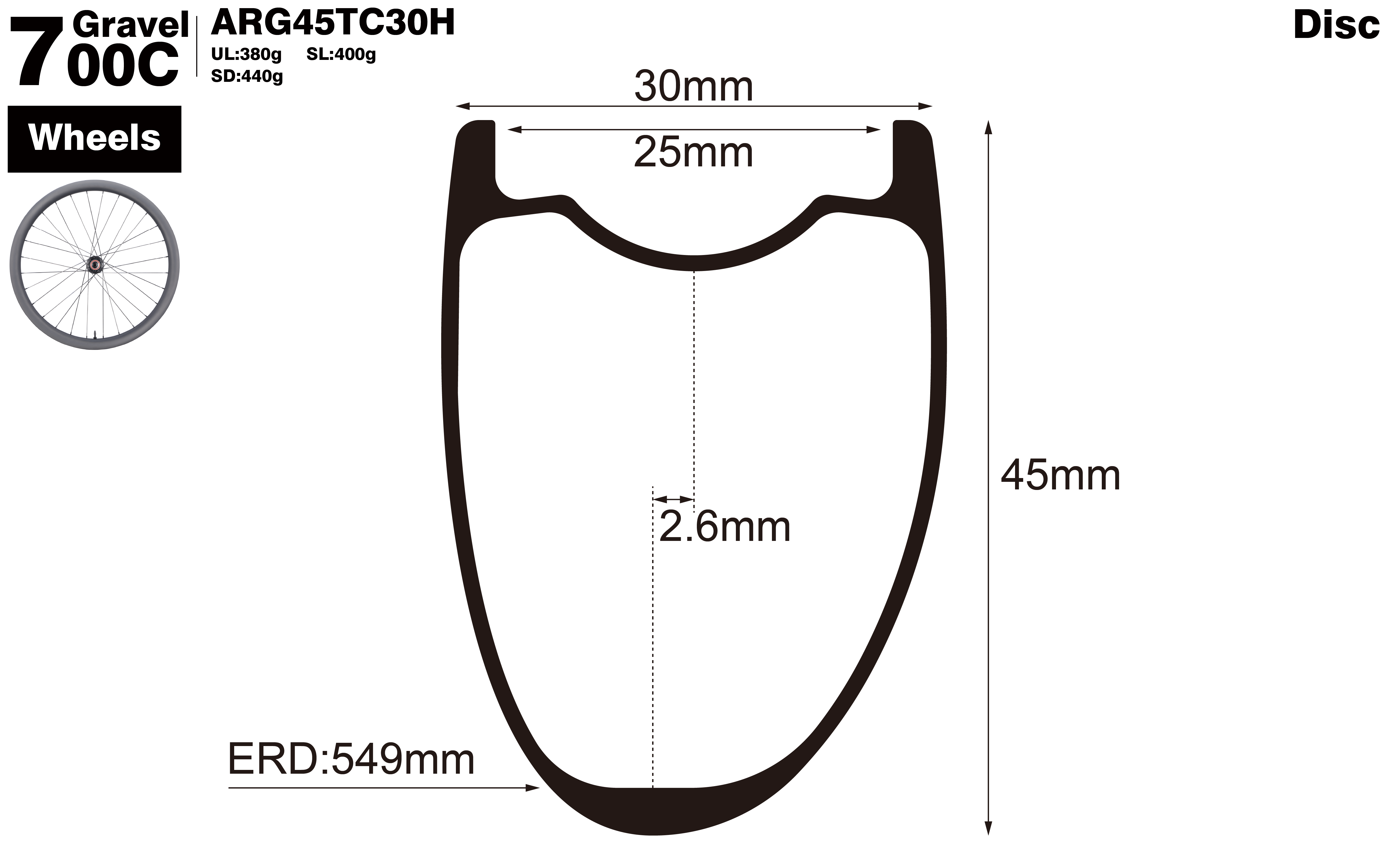

  • 700C-I25-D45-asymmetric-road-bike-hookless-gravel-carbon-wheels-profile-drawing
  • 700C-I25-D45-asymmetric-road-bike-hookless-gravel-carbon-rims-profile-drawing
  • 700C-I25-D45-asymmetric-road-bike-hookless-gravel-carbon-wheels-profile-drawing

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: ARG45TC30H Warranty: 2 Years (From purchase date)
    Basic
    Size: 700C Material: Toray Carbon Fiber (T700,T800,T1000） Rim Type: Clincher W/Hookless Tubeless: Compatible ERD: 549mm(Not including nipple head dimension) Outer Width: 30mm Inner Width: 25mm Rim Depth: 40mm Offset: 2.6 mm Spoke Hole Angle: ±9° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Brake System: Disc Version: SD:440±15g | SL:400±15g | UL:380±15g(Only UD ) Hole Count: 24H | 28H | 32H | 16H | 18H | 20H | 21H | 36H | 0H | Custom Drilling Pattern: 1:1 | 2:1 | G3 | Custom Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom | Matte Gold Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: UL:≤90kg,SL:≤120kg,SD:≤135kg Tire Size: 23C~43C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended
    Explanation
    Standard Version: SD version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800 Ultra-Lightweight: UL version is constructed by fully carbon fiber T800 or blend of T800
    Application
    SD Version: Road Disc/Gravel/CX SL Version: Road Disc/Gravel/CX UL Version: Road Disc/Gravel/CX
    Hubs
    Models: DT SWISS 180 EXP, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D,Carbon-Ti X-Hub, Extralite, Tune,Bitex BX312F / BX312R,Bitex BX306F/R, Novatec D411SB / D412SB,EIE ER270,EIE ER315 Front Axle Size: 12*100mm,15*100mm,QR*100mm Rear Axle Size: 12*142mm, QR*135mm Driver Body: Shimano Road 11S,Sram XDR, Shimano MSR,Campy 11-12S,Campy N3W 13s
    Spokes
    Sapim: Sapim CX Ray,Sapim Super CX,Sapim D-light,Sapim Race,Sapim Laser,Sapim CX sprint etc. Pillar: Pillar PSR X-TRA 1420 ,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Carbon Spoke: ECSR3.2SL,ECSR3.3SD,ECSR5.2SD Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
GUESTBOOK
  • Y
    visitor Yuta Y 2024-08-30
    Dear Customer Support, I am considering purchasing two ARG45TC30H ROAD CARBON RIMS. I will use these two as the front and rear wheels of my disc brake bicycle. In other words, the offset direction of the rims will be reversed. I have a question. Is it possible to shift the position of the valve hole by one spoke hole for one of the two rims I am purchasing? It says that this rim has angled spoke holes, but I would like to confirm whether the relationship between the spoke hole angle and the valve hole can be reversed for the two rims I am purchasing. Thank you Yuta Y
    REPLY
  • M
    visitor Martin Čápek 2024-03-07
    Dear Customer Support, recently I´ve bought wheels from you ARG45TC30H Road Wheels. Those wheels are hookless and I´ve overlooked this information when I was buying. My question is are those wheels compatibile with P ZERO™ RACE TLR in size 28 and 30? Is there any list of compatibility with your wheels and hookles tires combination? Thank you BR Martin

    EIE EIE Carbon:

    @Martin Čápek Thanks for your information. As long as is BSD622 tubeless tires are suitable for our ARG45TC30H wheels. And size 28 and 30 are compatible with our ARG45TC30H model. Hope that information helps you. If further questions ,please feel free to contact us. Thanks, EIECarbon

    2024-05-22

    REPLY
