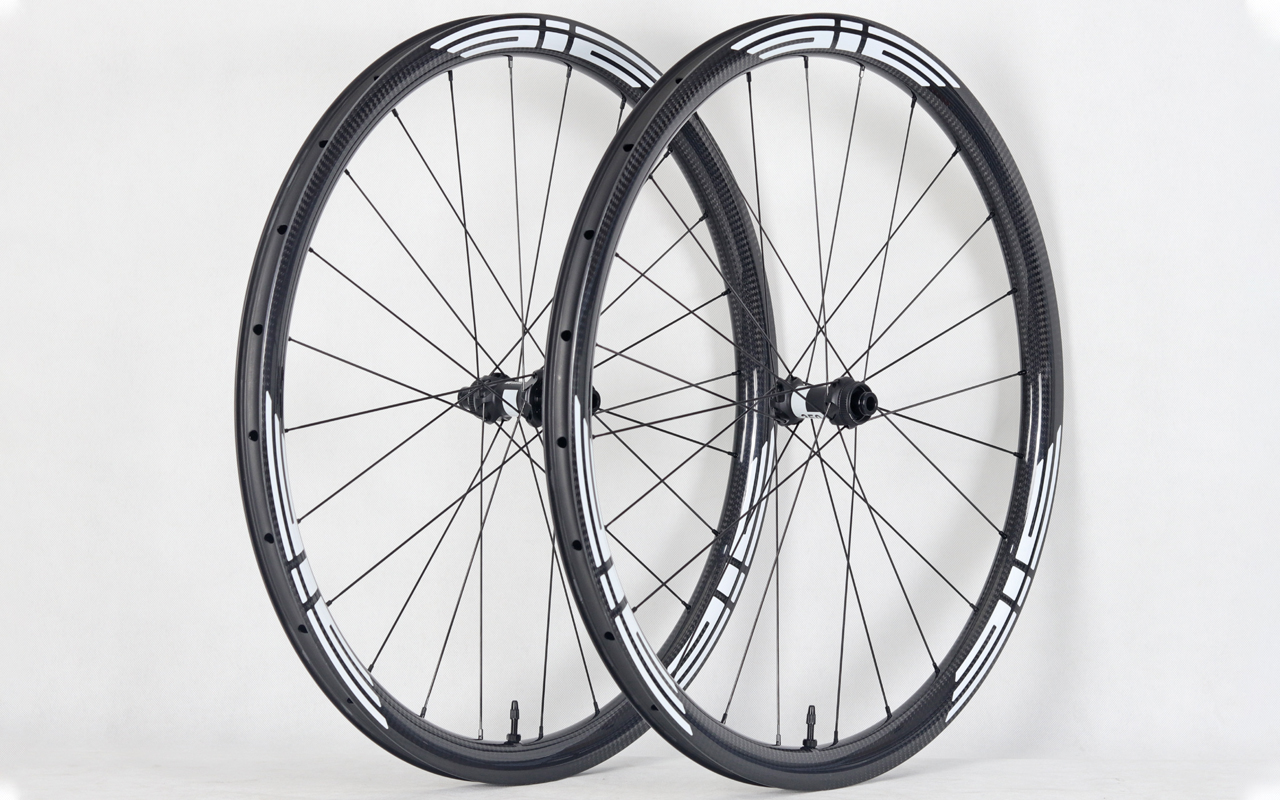

ARG35TC30H 700C 35mm deep 30mm wide hookless asymmetric carbon rims and custom clincher wheels for gravel bicycles tubeless compatible

ARG35TC30H HOOKLESS WIDE CARBON GRAVEL RIMS AND CUSTOM WHEELS

700C 35mm deep 30mm wide hookless asymmetric carbon rims and custom clincher wheels for gravel bicycles tubeless compatible

Customize & Buy Wheelset Customize & Buy Rim Only

RIMS
Brake System
Version
Hole Count
Hole Type
Drain Hole
Weave
Finish
Decal
ACCESSORIES/OTHERS
Valve Stem
Tubeless Tape

USD:0 | Approx Weight: 0g+/-15

PCS

RIMS
Brake System
Version
Hole Type
Drain Hole
Weave
Finish
Decal

HUBS
Hub Brand
Holes Count F
Holes Count R
Front Axle
Rear Axle
Freehub Body
Spoke Head
Disc Brake System
Hub Color
Ratchet

SPOKES/NIPPLES
Spoke
Nipple
ACCESSORIES/OTHERS
Valve Stem
Tubeless Tape

USD:0 | Approx Weight: 0g+/-3%

Pair

SPECS
FEATURES
WARRANTY

Product

Item No.: ARG35TC30H Warranty: 2 Years (From purchase date)

Basic

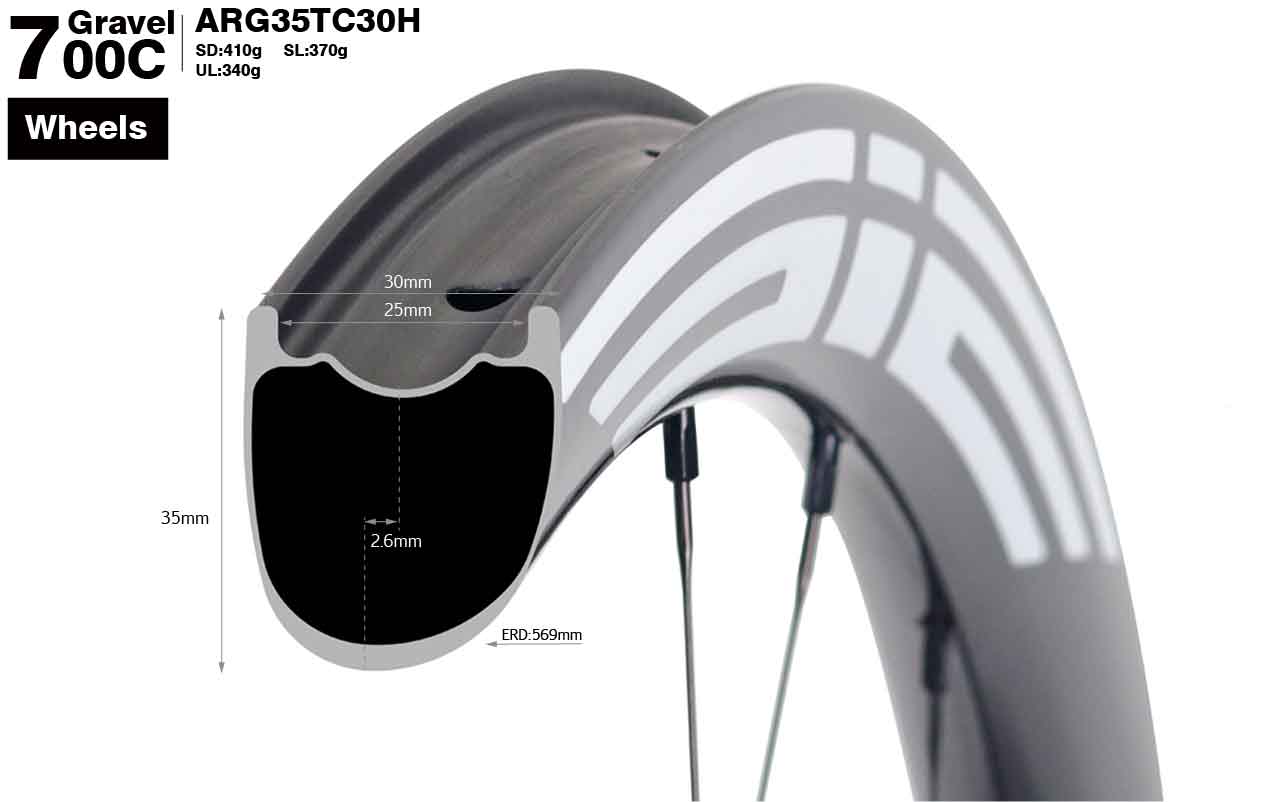

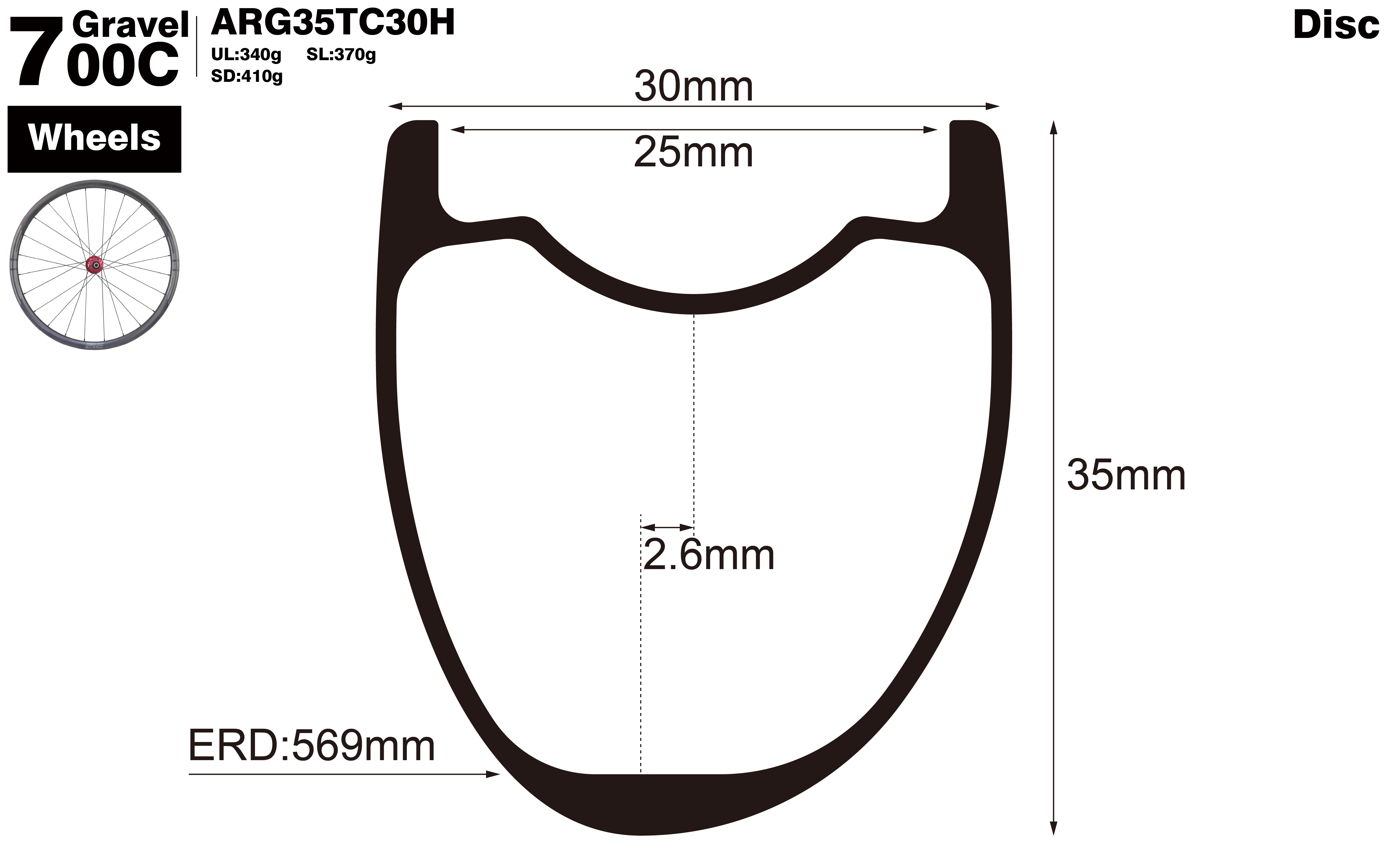

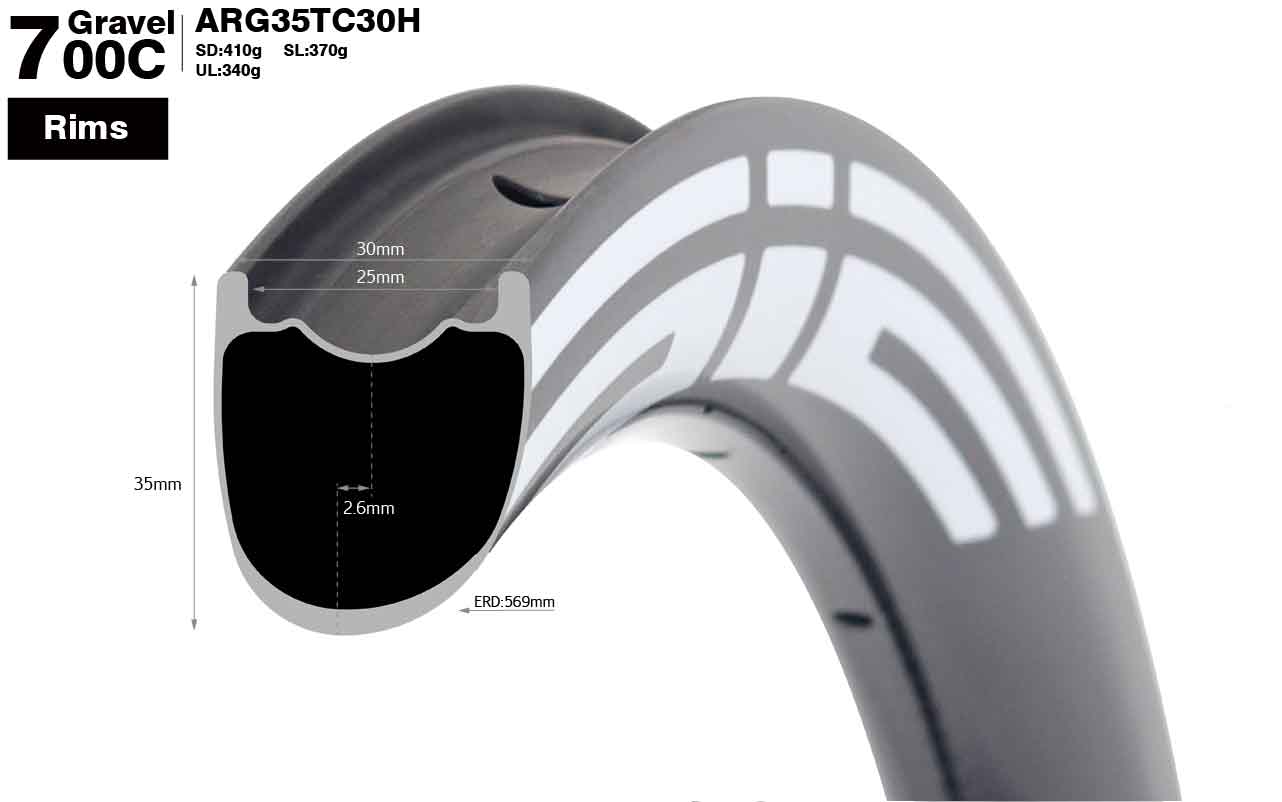

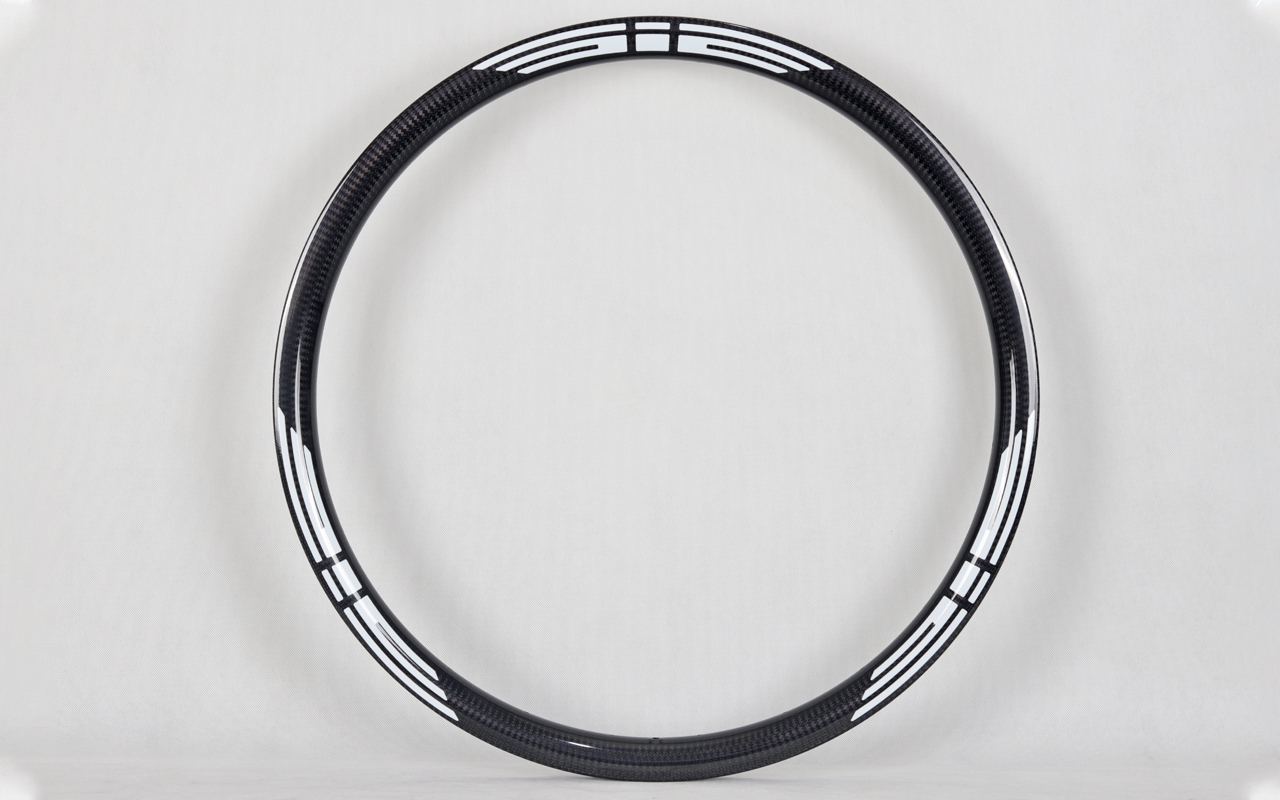

Size: 700C Material: Toray Carbon Fiber (T700,T800,T1000） Rim Type: Clincher W/Hookless Tubeless: Compatible ERD: 569mm(Not including nipple head dimension) Outer Width: 30mm Inner Width: 25mm Rim Depth: 35mm Offset: 2.6 mm Spoke Hole Angle: ±9° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm

Customization

Brake System: Disc Version: SD:410±15g | SL:370±15g | UL:340±15g(Only UD ) Hole Count: 24H | 28H | 32H | 16H | 18H | 20H | 21H | 36H | 0H | Custom Drilling Pattern: 1:1 | 2:1 | G3 | Custom Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom | Matte Gold Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker

Recommendation

Weight Limit: UL:≤90kg,SL:≤120kg,SD:≤135kg Tire Size: 23C~43C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended

Explanation

Standard Version: SD version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800 Ultra-Lightweight: UL version is constructed by fully carbon fiber T800 or blend of T800

Application

SD Version: Road Disc/Gravel/CX SL Version: Road Disc/Gravel/CX UL Version: Road Disc/Gravel/CX

Hubs

Models: DT SWISS 180 EXP, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D,Carbon-Ti X-Hub, Extralite, Tune,Bitex BX312F / BX312R,Bitex BX306F/R, Novatec D411SB / D412SB,EIE ER270,EIE ER315 Front Axle Size: 12*100mm,15*100mm,QR*100mm Rear Axle Size: 12*142mm, QR*135mm Driver Body: Shimano Road 11S,Sram XDR, Shimano MSR,Campy 11-12S,Campy N3W 13s

Spokes

Sapim: Sapim CX Ray,Sapim Super CX,Sapim D-light,Sapim Race,Sapim Laser,Sapim CX sprint etc. Pillar: Pillar PSR X-TRA 1420 ,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Carbon Spoke: ECSR3.2SL,ECSR3.3SD,ECSR5.2SD Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round

Nipples

Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black

Note

Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.

PHOTOS

GUESTBOOK

B

visitor Bruce Schwab 2022-06-19

Looking for 30mm wide 700c rims....one x 24H, and one x 28H Shipping to Maine, USA. Where do you ship from?

EIE EIE Carbon:

@Bruce Schwab Thank you for your inquiry. According to your requirement ,we suggest our SR30TC26 this model which can be met your demand.We are no problem to drill one 24H and one 28H .Our facility is located in China ,so the items will be shipped from China.Shipping to USA by EMS will take around 2 weeks now . If any question ,please feel free to contact us . Thanks EIECarbon

2022-08-26

REPLY
D

visitor Daniel Blyth 2021-08-30

Hi There, I'm looking to upgrade my wheels on my gravel bike. I have a Cervelo Aspero which currently has heavy aluminum wheels and I wanted to get a wheel set that could handle up 700x 40mm tyres. I would prefer something that can handle clincher wheels but also ok if they they are only tubeless. When I look at your wheels I get confused at all the different profiles available. And the components for the hubs. What can you recommend as a middle of the road option ? I'm also not sure what the benefits are in the height of the dish as some seem very shallow and others deep. Obviously I want fast disc wheels but does have to be too expensive or fancy as it is for gravel. Thanks in advance.

EIE EIE Carbon:

@Daniel Blyth We will recommend our ARG35TC30H this model for 700X40mm tyres.As a middle of road options ,you can take a look wheels build with DT Swiss 350 or bitex hubs,spoke can select Pillar 1420 which is alternative of Sapim CX-Ray . What about your bike frame specs?We can have a look and give you some suitable suggestion. Thanks EIECarbon

2021-09-06

REPLY
