ARG35TC28 DISC CARBON ROAD RIMS AND CUSTOM WHEELS

700C 35mm deep 28mm wide asymmetric carbon rims and custom clincher wheels for road bicycles tubeless compatible

  • 700c-I21-D35-asymmetric-road-bike-gravel-carbon-rims-profile-drawing

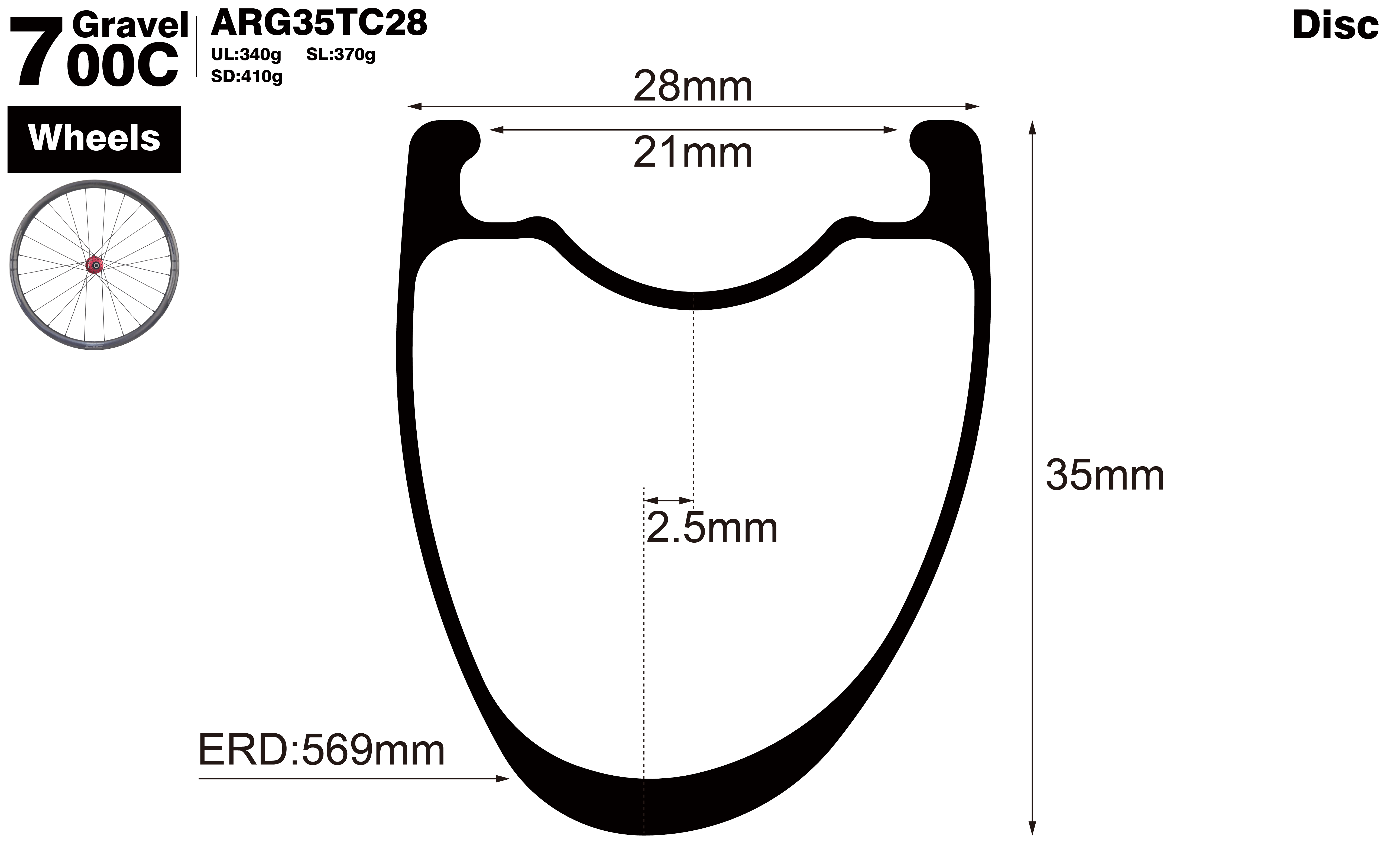

  • 700c-I21-D35-asymmetric-road-bike-gravel-carbon-wheels-profile-drawing
  • 700c-I21-D35-asymmetric-road-bike-gravel-carbon-rims-profile-drawing
  • 700c-I21-D35-asymmetric-road-bike-gravel-carbon-wheels-profile-drawing

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: ARG35TC28 Warranty: 2 Years (From purchase date)
    Basic
    Size: 700C Material: Toray Carbon Fiber (T700,T800,T1000） Rim Type: Clincher W/Hooks Tubeless: Compatible ERD: 569mm(Not including nipple head dimension) Outer Width: 28mm Inner Width: 21mm Rim Depth: 35mm Offset: 2.5 mm Spoke Hole Angle: ±9° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Brake System: Disc Version: SD:410±15g | SL:370±15g | UL:340±15g(Only UD ) Hole Count: 16H | 18H | 20H | 21H | 24H | 28H | 32H | 36H | 0H | Custom Drilling Pattern: 1:1 | 2:1 | G3 | Custom Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom | Matte Gold Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: UL:≤90kg,SL:≤120kg,SD:≤135kg Tire Size: 23C~43C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended
    Explanation
    Standard Version: SD version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800 Ultra-Lightweight: UL version is constructed by fully carbon fiber T800 or blend of T800
    Application
    SD Version: Road Disc/Gravel/CX SL Version: Road Disc/Gravel/CX UL Version: Road Disc/Gravel/CX
    Hubs
    Models: DT SWISS 180 EXP, DT SWISS 240 EXP, DT SWISS 350, Chris King R45D,Carbon-Ti X-Hub, Extralite, Tune,Bitex BX312F / BX312R,Bitex BX306F/R, Novatec D411SB / D412SB,EIE ER270,EIE ER315 Front Axle Size: 12*100mm,15*100mm,QR*100mm Rear Axle Size: 12*142mm, QR*135mm Driver Body: Shimano Road 11S,Sram XDR, Shimano MSR,Campy 11-12S,Campy N3W 13s
    Spokes
    Sapim: Sapim CX Ray,Sapim Super CX,Sapim D-light,Sapim Race,Sapim Laser,Sapim CX sprint etc. Pillar: Pillar PSR X-TRA 1420 ,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Carbon Spoke: ECSR3.2SL,ECSR3.3SD,ECSR5.2SD Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
GUESTBOOK
  • L
    visitor Lucas 2024-01-31
    Hello, I am wondering, what is the weight limit for SD/SL/UL version of your road cycling rims? (for example https://www.eiecarbon.com/goods/details/ARG35TC28). I suppose, the recommendation weight limit under 120 kg (i suppose its total weight = rider + bike) will not be the same for each version of rim. Thanks and have a nice day =)

    EIE EIE Carbon:

    @Lucas Thanks for your inquiry！ We recommend a max rider weight of 130kg / 110kg / 90kg for the ARG35TC28 rims SD/SL/UL versions respectively. Could you tell us the rider's weight and riding condition? So that we can give you better recommendations. Any further questions,feel free to contact us. Thanks, EIECarbon

    2024-05-23

    REPLY
  • R
    visitor Richard 2023-05-04
    Hi am I able to purchase rim only or get a full wheelset? What is the process to get a quote? Thanks Richard

    EIE EIE Carbon:

    @Richard Thanks for your inquiry. Dear, both rims only and build a complete wheelset are available.Which one you prefer? rims or wheelset? You can tell us the specifications you want so we can better advise you and give you a price. We have sent you an email to discuss more details,please kindly check it. Thanks, EIECarbon

    2024-06-28

    REPLY
  • J
    visitor Jakub Bodis 2023-03-19
    Hello, I am interested about this rim ARG35TC28, UD weave, SATIN finish, 38 holes, without beads holes. How long it will takes to produce 2 these rims form me? Thank you.

    EIE EIE Carbon:

    @Jakub Bodis Thanks for interested in ARG35TC28 rims. Yes,we can make UD weave, Stain finish, 38 Holes, without beads holes rim. In generally, the production time will take around 2-3 weeks. We have sent you an email to discuss more details ,please check it. Thanks, EIECarbon

    2024-06-13

    REPLY
  • J
    visitor Jean dufour 2023-02-09
    Hello, What is your price for a pair of ARG35TC28 in UL finish full T800 24 holes. Is it possible to build them with internal nipples ? regards, Jean

    EIE EIE Carbon:

    @Jean dufour Thanks for your inquiry. According to your requirements, please see the following rim specs and price: ARG35TC28 UL version,24 holes,internal nipple hole,UD weave,Matte finish,No decal -The price is 442usd one pair. If further questions, please feel free to contact us. Thanks, ElECarbon

    2024-06-24

    REPLY
