A650BC29D25 CARBON AM/DH RIMS AND CUSTOM WHEELS

27.5er(650B)-I29-D25 asymmetric hookless carbon fiber mtb rims and custom AM/DH wheels tubeless compatible

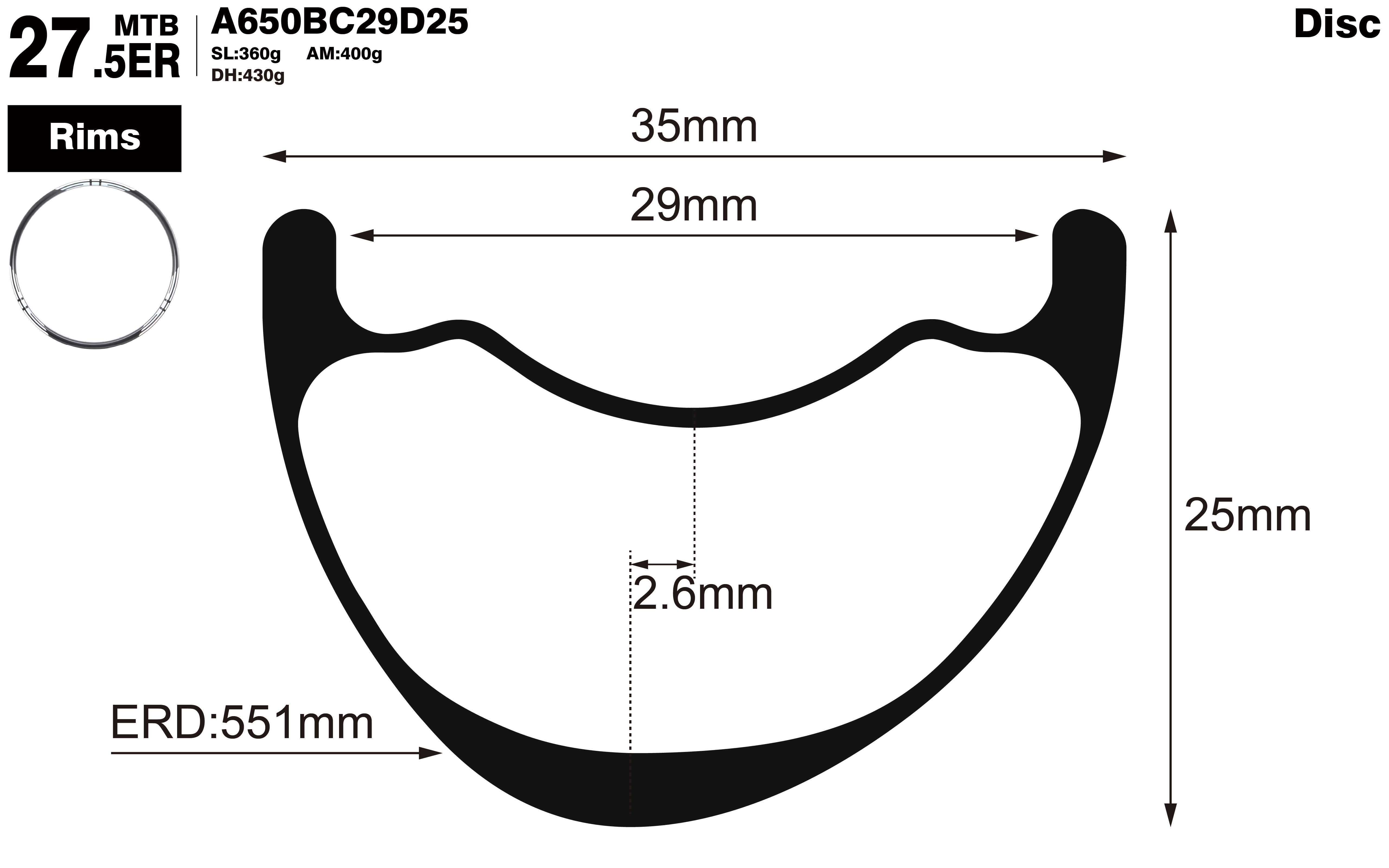

  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-rims-profile-drawing

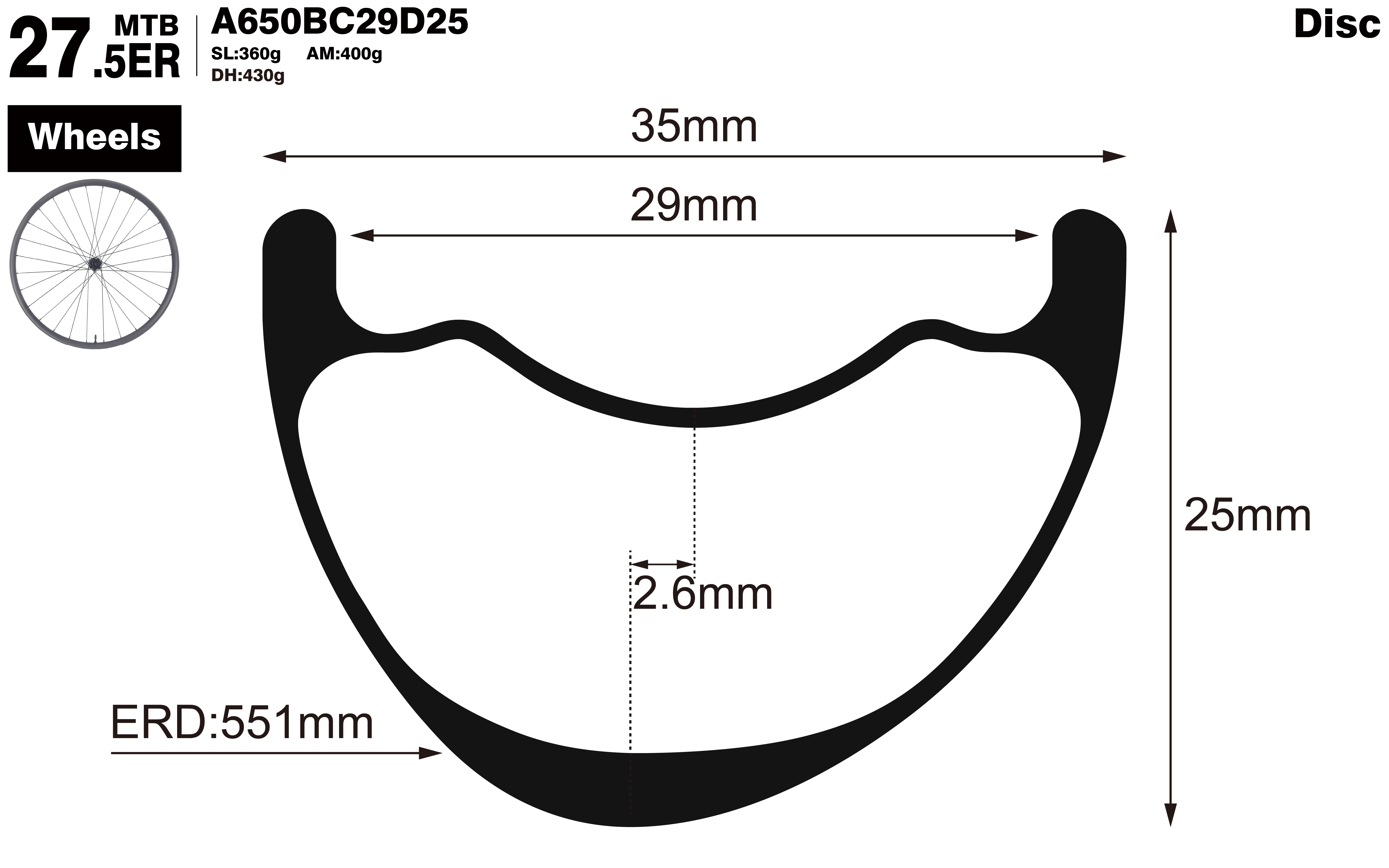

  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels-profile-drawing

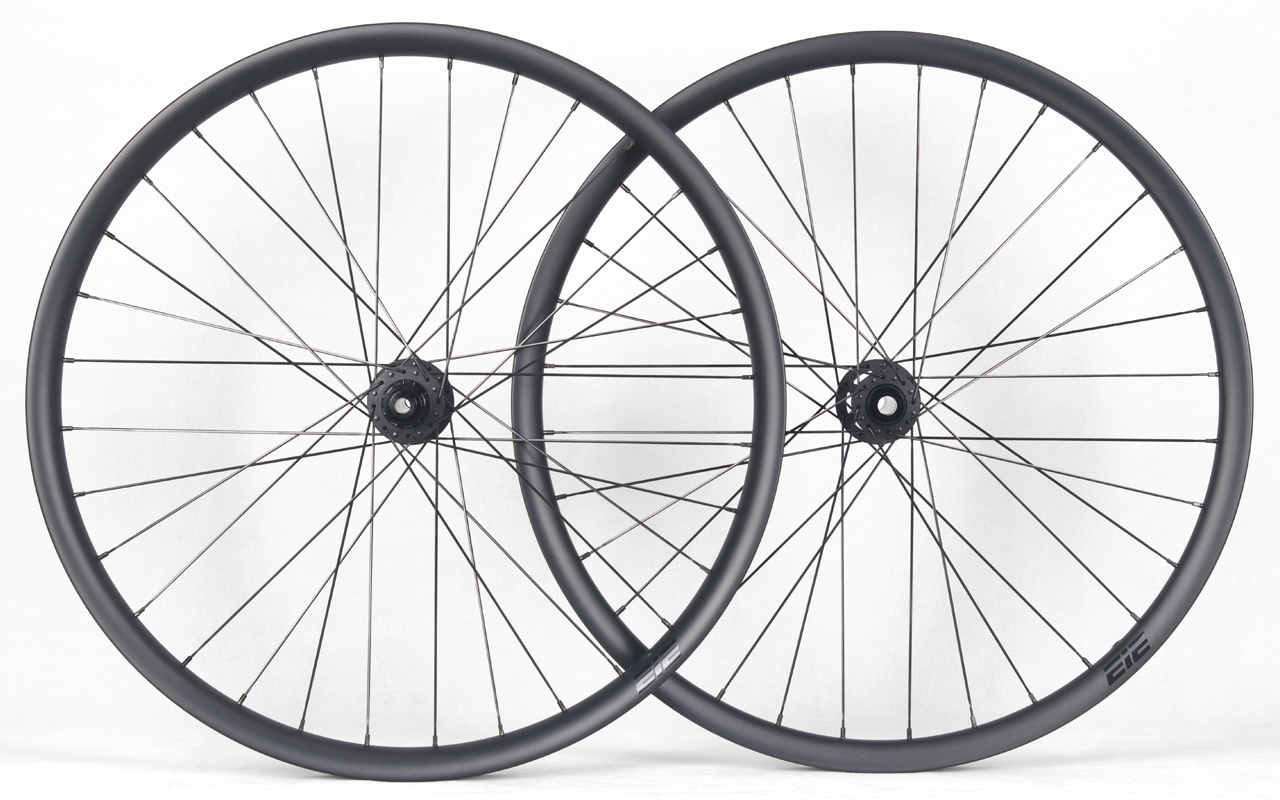

  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels

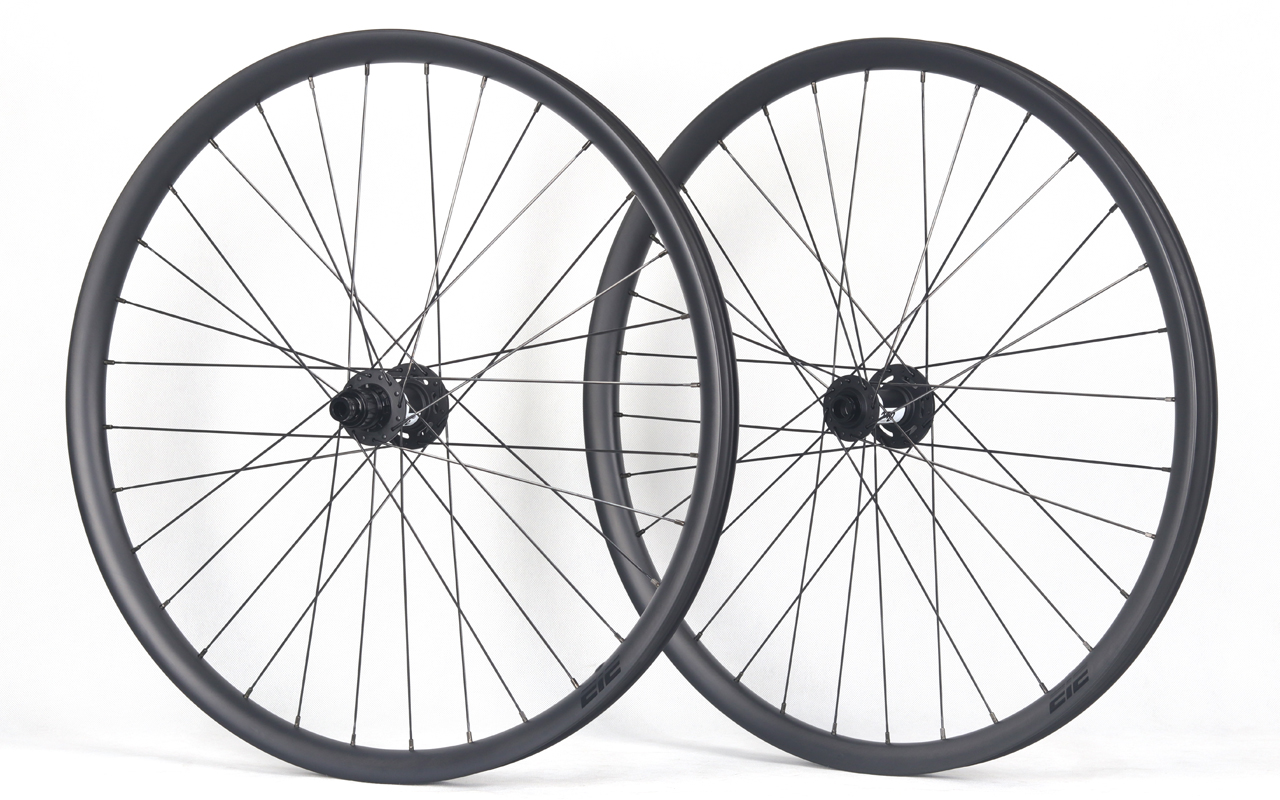

  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels-2

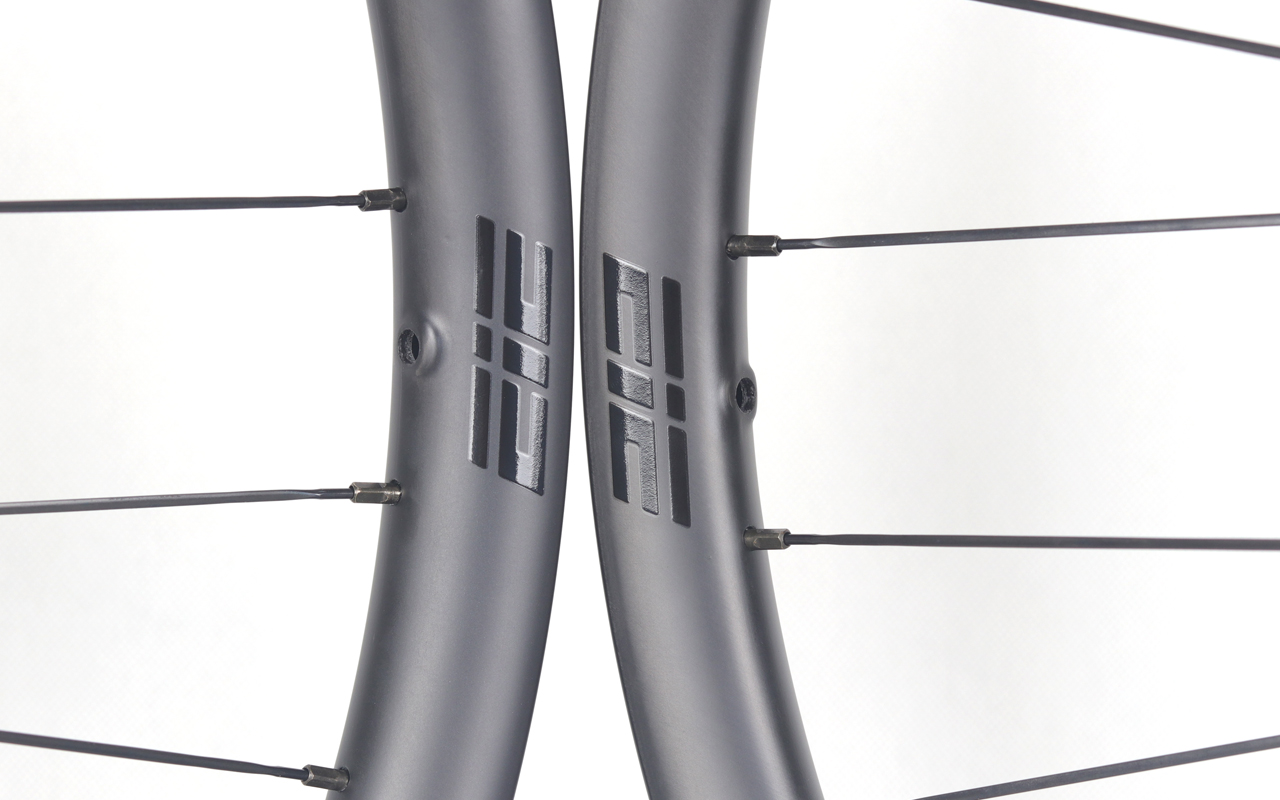

  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels-3
  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-rims-profile-drawing
  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels-profile-drawing
  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels
  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels-2
  • 27.5er-I29-D25-asymmetric-mountain-bike-hookless-AM-carbon-wheels-3

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: S29C31D24 Warranty: 2 Years (From purchase date)
    Basic
    Size: 27.5er/650B Material: Toray Carbon Fiber (T700,T800) Rim Type: Clincher W/Hookless Tubeless: Compatible ERD: 551mm(Not including nipple head dimension) Outer Width: 35mm Inner Width: 29mm Rim Depth: 25mm Offset: 2.6mm Spoke Hole Angle: ±6° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Version: AM:400±15g | DH:430±15g | SL:360±15g Hole Count: 24H | 28H | 32H | 16H | 18H | 20H | 21H | 36H | Custom | 0H Hole Type: Standard Holes | Without Rim Bead Holes(Tubeless Ready) | Internal Nipple Holes | Drilling Pattern: 1:1 | 2:1 | G3 | Custom Drain Hole: No Drain Holes | With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: AM:≤110kg,DH:≤120kg Tire Size: 2.2''~2.7'' Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 40psi recommended
    Explanation
    UL Version: UL version is constructed by fully carbon fiber T800 or mix T800 and T1100
    Application
    All Mountain: AM |Eduro Downhill: DH
    Hubs
    Models: DT SWISS 180 EXP,DT SWISS 240 EXP,DT SWISS 350,Bitex BX211F/R ,Bitex BX212F/R,Bitex BX213F/R,Extralite ,Carbon Ti ,Hope Pro 5,Tune,Novatec,EIE EM300,EIE EM285 Front Axle Size: 15*110mm BOOST,15*110 Torque,15*110 RS-1,15*100mm,15*100 Torque,20*110mm DH BOOST,20*110 Old DH,Lefty 2.0,Lefty1.0,QR*100mm Rear Axle Size: 12/142mm,12/148mm BOOST,12/157mm Super BOOST,12*150mm,QR/135mm,Single Spee Driver Body: Shimano MTB 10/11S,Sram XD,Shimano Micro Spline 12sp,Shimano MTB 10/11S Alloy,Sram XD Alloy,Shimano Micro Spline 12sp Alloy
    Spokes
    Sapim: Sapim CX Ray,Sapim D-light,Sapim Race,Sapim Laser,Sapim Leader,Sapim CX sprint etc. Pillar: Pillar 1420,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Berd : Berd Polylight in Black,Berd PolyLight in White Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: None/Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
GUESTBOOK
  • J
    visitor Jean Bellemare 2025-01-02
    Hi, I am considering the A650BC29D25 AM/DH CARBON RIM, for a rear wheel for my Santa Cruz Heckler SL. The bike weighs 43lbs and I weigh 135lbs. I will build this wheel with a Shimano XT rear hub and Sapim CX-RAY spokes. Thank you.

    EIE EIE Carbon:

    @Jean Bellemare Thanks for your inquiry. Based on your system weight,AM version is enough for your riding. If any questions,feel free to contact us. Thanks, EIE Carbon

    2026-01-30

    REPLY
  • J
    visitor Jean Bellemare 2024-12-28
    Hi, I would like to have the A650BC29D25 rim, with 28 holes. It will be mounted on a XT hub, with Sapim CX-RAY spokes. Will be using the wheel on a Santa Cruz Heckler SL, and I wheigh 135lbs.
    REPLY
  • T
    visitor Tomás 2021-04-24
    Hello, I have discovered your website looking for rings to mount some wheels for my bicycle. I like many the rings they have, especially the models: A29CD20D28, A29CD29D25, the weights for the XC version is the SL, correct? The weight is real, the rings have a lot of tolerance margin ?. Do you have any photos with the rim weights? Do you make complete wheel assemblies? Or do you just have the rims? I'm looking for wheels with those dt swiss 240 exp rims and hubs. I like your material, thank you in advance. Greetings.

    EIE EIE Carbon:

    @Tomás Yeah ,our SL version is suggested for XC or less aggressively AM use.The weight is a approx value ,the real weight is up to the final manufacturing weight ,so it has to be tolerance. We can build complete wheels ,if you want to custom your build ,please advise the detailed wheels specs including rims ,hubs spec ,spoke ,nipples ,then we can quote for your accordingly. Another way is that you can browsing our site ,we also listed some available wheels spec on product page ,you can check price and weight for reference . If further questions ,please let us know. Thanks EIECarbon

    2021-04-26

    REPLY
