A29C35D18 AM/DH CARBON RIMS AND CUSTOM WHEELS

29er-I35-D18 Asymmetric shallow profile carbon fiber mtb rims and custom wheels tubeless compatible for enduro

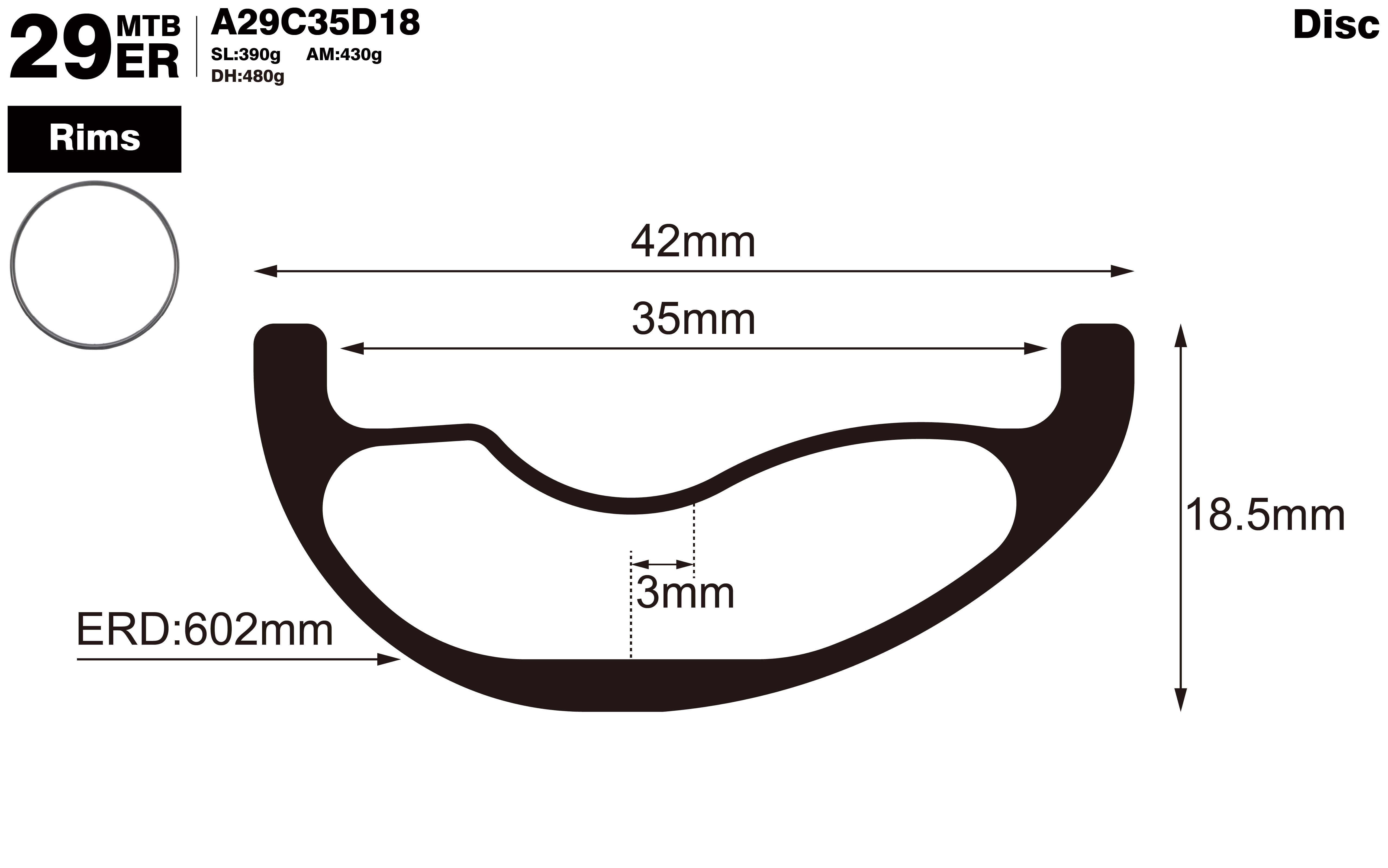

  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-rims-profile-drawing

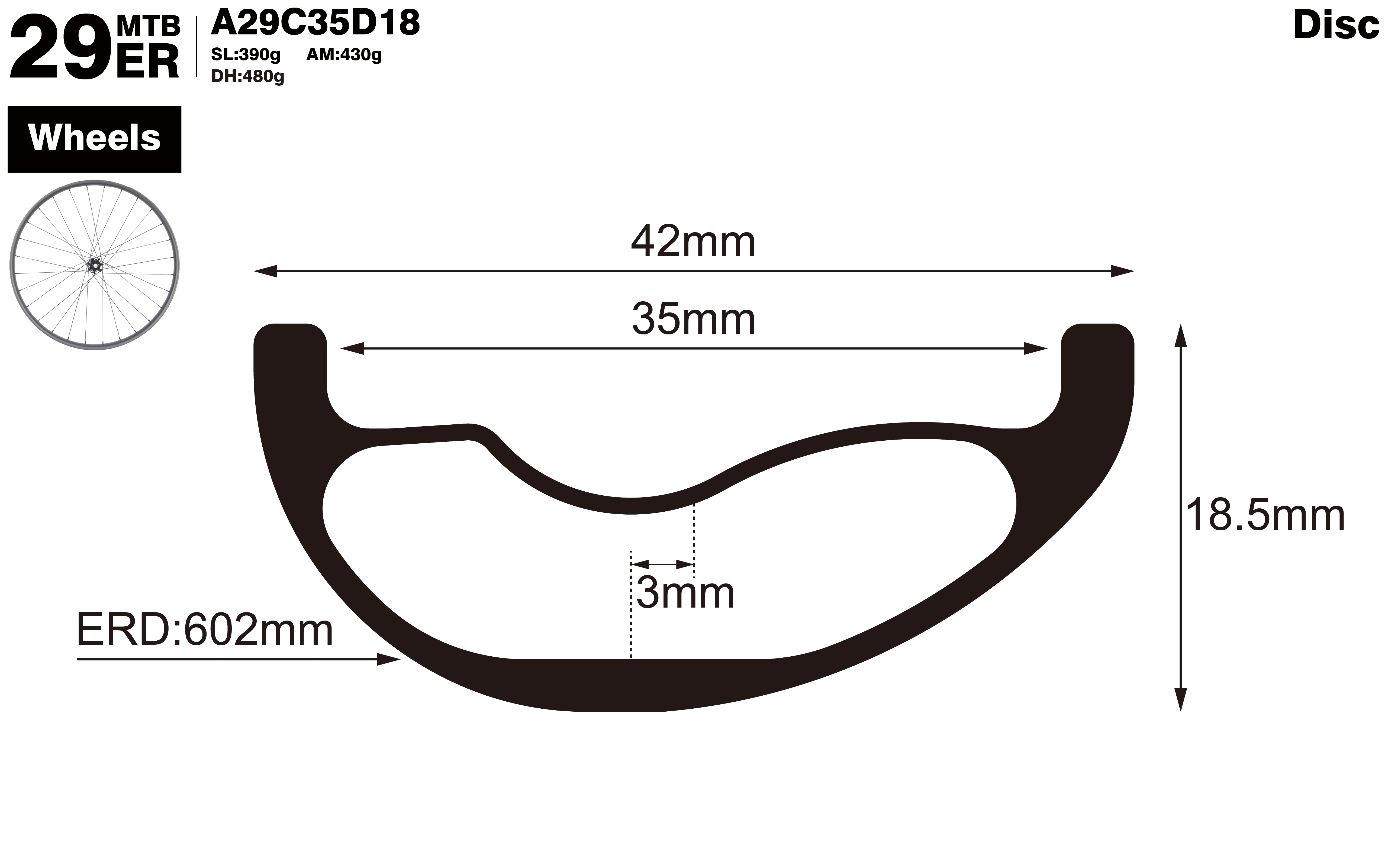

  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-wheels-profile-drawing

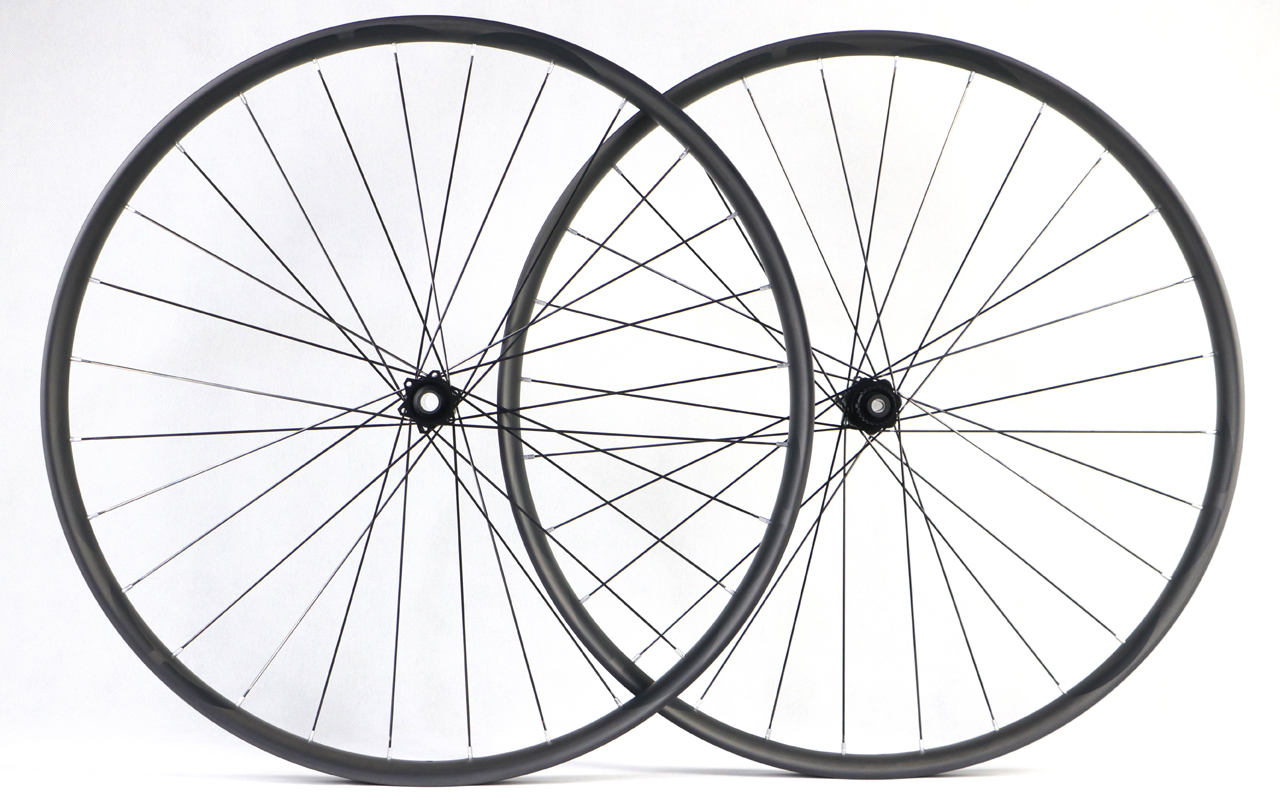

  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-wheels

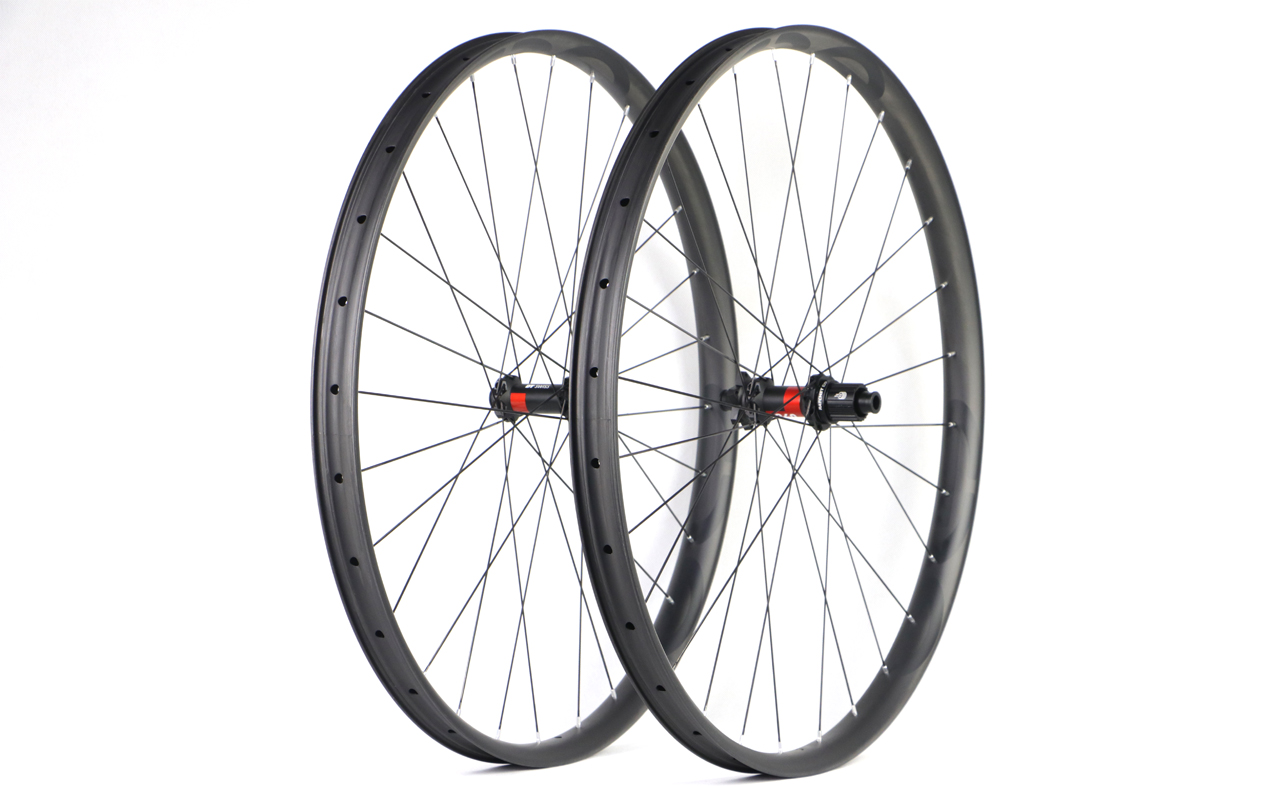

  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-wheels-2
  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-rims-profile-drawing
  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-wheels-profile-drawing
  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-wheels
  • 29er-I35-D18.5-asymmetric-mountain-bike-hookless-AM-carbon-wheels-2

Customize & Buy Wheelset Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: A29C35D18 Warranty: 2 Years (From purchase date)
    Basic
    Size: 29er Material: Toray Carbon Fiber (T700,T800,T1000) Rim Type: Clincher W/Hookless Tubeless: Compatible ERD: 602mm(Not including nipple head dimension) Outer Width: 42mm Inner Width: 35mm Rim Depth: 18.5mm Offset: 3mm Spoke Hole Angle: ±6° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Version: AM:430±15g | DH:480±15g | SL:390±15g Hole Count: 24H | 28H | 32H | 16H | 18H | 20H | 21H | 36H | Custom | 0H Hole Type: Standard Holes Drilling Pattern: 1:1 | 2:1 | G3 | Custom Drain Hole: No Drain Holes |With Drain Holes | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
    Recommendation
    Weight Limit: SL:≤100kg,AM:≤105kg,DH:≤105kg Tire Size: 2.4"~3.1" Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 40psi recommended
    Explanation
    Standard Version: AM&DH version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800
    Application
    Cross Country: AM | DH | SL All Moutain: AM | DH | SL Downhill: DH
    Hubs
    Models: DT SWISS 180 EXP,DT SWISS 240 EXP,DT SWISS 350,Bitex BX211F/R ,Bitex BX212F/R,Bitex BX213F/R,Extralite ,Carbon Ti ,Hope Pro 5,Tune,Novatec,EIE EM300,EIE EM285 Front Axle Size: 15*110mm BOOST,15*110 Torque,15*110 RS-1,15*100mm,15*100 Torque,20*110mm DH BOOST,20*110 Old DH,Lefty 2.0,Lefty1.0,QR*100mm Rear Axle Size: 12/142mm,12/148mm BOOST,12/157mm Super BOOST,12*150mm,QR/135mm,Single Spee Driver Body: Shimano MTB 10/11S,Sram XD,Shimano Micro Spline 12sp,Shimano MTB 10/11S Alloy,Sram XD Alloy,Shimano Micro Spline 12sp Alloy
    Spokes
    Sapim: Sapim CX Ray,Sapim D-light,Sapim Race,Sapim Laser,Sapim Leader,Sapim CX sprint etc. Pillar: Pillar 1420,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Berd : Berd Polylight in Black,Berd PolyLight in White Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
    Nipples
    Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black
    Note
    Valve Kits: None/Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
PHOTOS
GUESTBOOK
  • J
    visitor JJ 2023-11-03
    Hi, I am potentially interested in the A29C35D18 rims (DH layout version). I am based in Switzerland. I have few questions: Question 1) It is possible to make a mixed wheel/rim order? * Front wheel would be A29C35D18 DH rim, 32-hole version, DT Swiss 240 20mm boost 6 bolt (DT Swiss product code: H240BDEXR32SA7854S) and black Sapim CX-Ray spokes, black brass nipples – this wheel does not need to be built as I have a close friend who builds all my wheels * Rear would be just the rim A29C35D18 DH rim, 32-hole version If the above option is possible, please provide quote. Question 2) It is possible to declare this order at zero value - crash replacement (for the rims, handling fee and delivery) at the invoice and customs documents? I have a limited budget and hope to save wherever I am able to. Let me know. Thanks, JJ
    REPLY
  • R
    visitor Romano 2022-02-13
    Hi, For A29C35D18 SL rim, which is the lightest finish and weaves? it is possible to have it Without Rim Bead Hole Thank you Best regards Romano

    EIE EIE Carbon:

    @Romano Dear,thank you for inquiry. For A29C35D18 rims ,the lighest finish and weave is UD paintless or UD matte finish.Paintless finish is more expensive than matte finish. For without rium bead hole ,as the rim is very shallow ,so we think it is difficult to build wheels without rim bead hole.If your builder has method to build so shallow rim without bead hole ,we can drill that type for you.Please let me know your thought If any questions,please feel free to contact us. Thanks EIECarbon

    2022-02-23

    REPLY
  • H
    visitor Henrik 2021-03-29
    Hi . Do you have any nice discounts for me as Swedens best Master cyklist ? Or a coupon code for a set of wide wheels? And how long would it take to make and ship a set of A29C35D18 with dt240 hubs

    EIE EIE Carbon:

    @Henrik Hi Henrik Thanks for the inquiry.We alreay sent details to you via email ,please kindly check . If further questions,please feel free to reach out to us . Thanks EIECarbon

    2021-03-31
