A29C30D18 29er-I30-D18 Asymmetric shallow profile carbon fiber mtb rims and custom wheels tubeless compatible for all mountain

A29C30D18 AM/XC CARBON RIMS AND CUSTOM WHEELS

29er-I30-D18 Asymmetric shallow profile carbon fiber mtb rims and custom wheels tubeless compatible for all mountain

Customize & Buy Wheelset Customize & Buy Rim Only

RIMS
Version
Hole Count
Hole Type
Drain Hole
Weave
Finish
Decal
ACCESSORIES/OTHERS
Valve Stem
Tubeless Tape

USD:0 | Approx Weight: 0g+/-15

PCS

RIMS
Version
Hole Type
Drain Hole
Weave
Finish
Decal

HUBS
Hub Brand
Disc Brake System
Holes Count F
Hub Color
Holes Count R
Front Axle
Rear Axle
Freehub Body
Spoke Head
Ratchet

SPOKES/NIPPLES
Spoke
Nipple
ACCESSORIES/OTHERS
Valve Stem
Tubeless Tape

USD:0 | Approx Weight: 0g+/-3%

Pair

SPECS
FEATURES
WARRANTY

Product

Item No.: A29C30D18 Warranty: 2 Years (From purchase date)

Basic

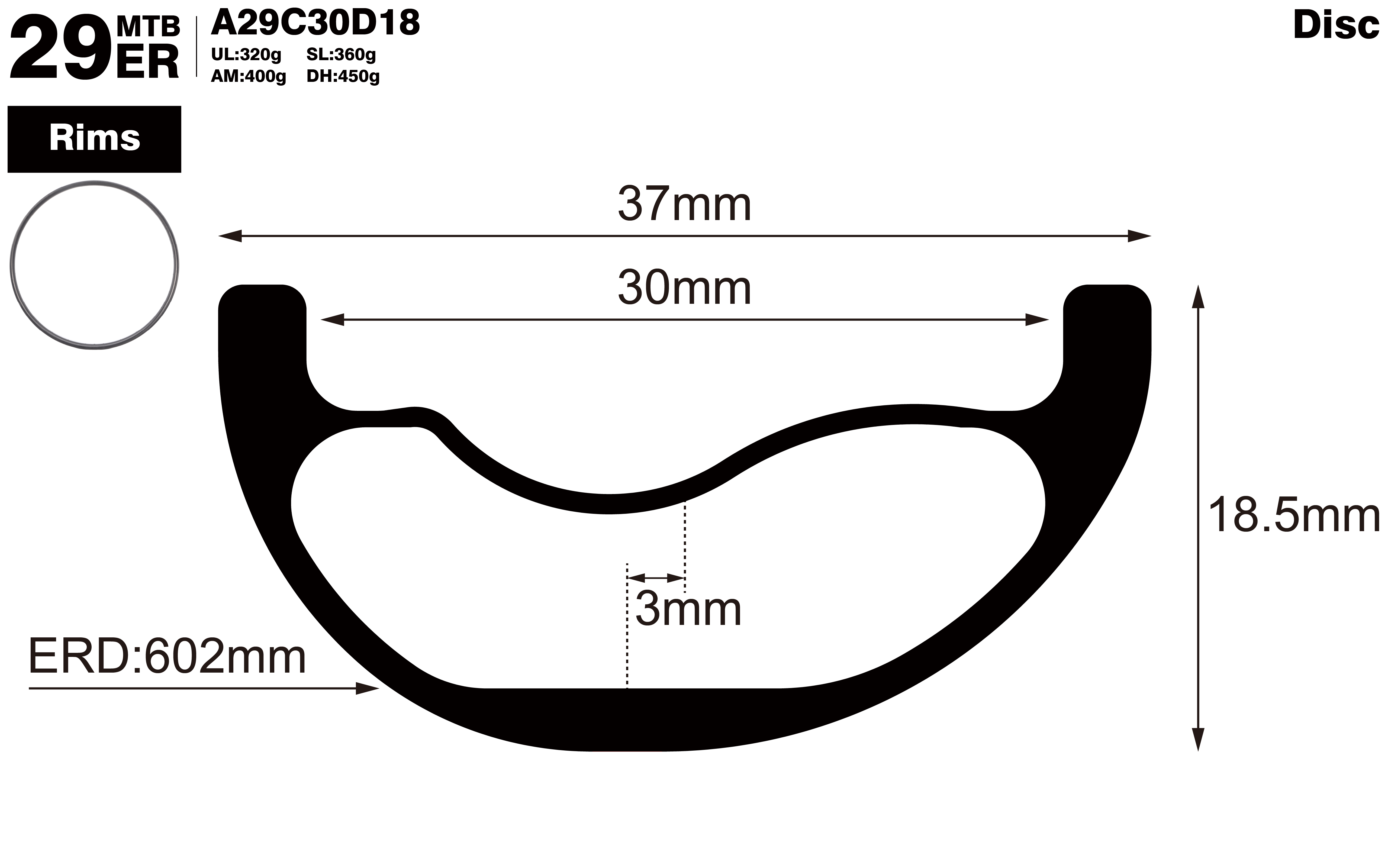

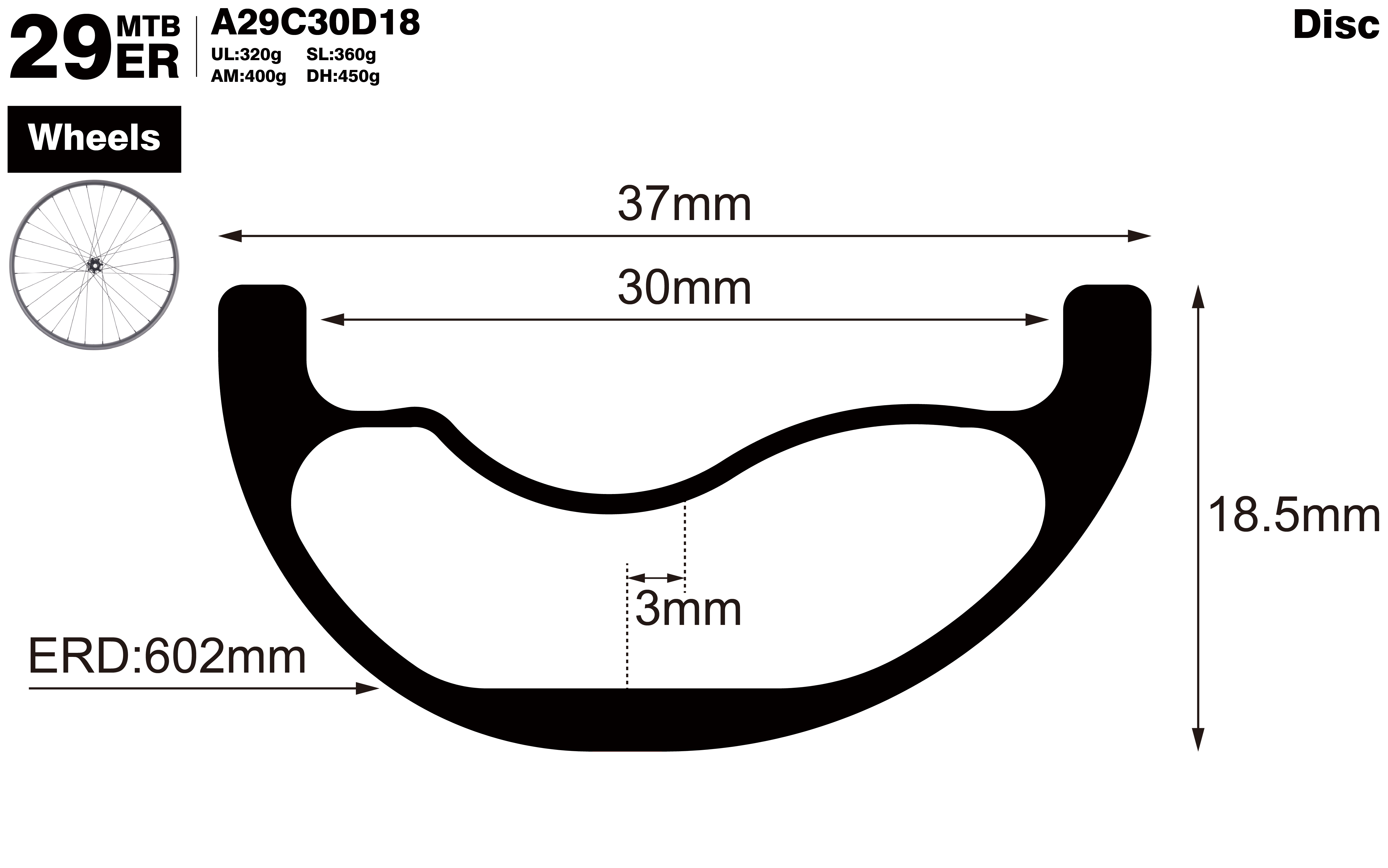

Size: 29er Material: Toray Carbon Fiber (T700,T800,T1000) Rim Type: Clincher W/Hookless Tubeless: Compatible ERD: 602mm(Not including nipple head dimension) Outer Width: 37mm Inner Width: 30mm Rim Depth: 18.5mm Offset: 3mm Spoke Hole Angle: ±6° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm

Customization

Version: AM:400±15g | DH:450±15g | SL:360±15g | UL:320±15g(Only UD ) Hole Count: 28H | 32H | 24H | 16H | 18H | 20H | 21H | 36H | Custom | 0H Hole Type: Standard Holes Only Drilling Pattern: 1:1 | 2:1 | G3 | Custom Drain Hole: No Drain Holes | | | | With Drain Holes | | | Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Custom Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker

Recommendation

Weight Limit: UL:≤90kg,SL:≤100kg,AM:≤105kg,DH:≤105kg Tire Size: 2.2"~2.7" Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 40psi recommended

Explanation

Standard Version: AM&DH version is constructed by fully carbon fiber T700 Superlight : SL version is constructed by blend of carbon fiber T700+T800 Ultra-Lightweight: UL version is constructed by blend of carbon fiber T800+T1000.

Application

Cross Country: XC | SL | UL All Moutain: AM | DH Downhill: DH

Hubs

Models: DT SWISS 180 EXP,DT SWISS 240 EXP,DT SWISS 350,Bitex BX211F/R ,Bitex BX212F/R,Bitex BX213F/R,Extralite ,Carbon Ti ,Hope Pro 5,Tune,Novatec,EIE EM300,EIE EM285 Front Axle Size: 15*110mm BOOST,15*110 Torque,15*110 RS-1,15*100mm,15*100 Torque,20*110mm DH BOOST,20*110 Old DH,Lefty 2.0,Lefty1.0,QR*100mm Rear Axle Size: 12/142mm,12/148mm BOOST,12/157mm Super BOOST,12*150mm,QR/135mm,Single Spee Driver Body: Shimano MTB 10/11S,Sram XD,Shimano Micro Spline 12sp,Shimano MTB 10/11S Alloy,Sram XD Alloy,Shimano Micro Spline 12sp Alloy

Spokes

Sapim: Sapim CX Ray,Sapim D-light,Sapim Race,Sapim Laser,Sapim Leader,Sapim CX sprint etc. Pillar: Pillar 1420,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick Berd : Berd Polylight in Black,Berd PolyLight in White Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round

Nipples

Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass Pillar: Aluminum Black,Brass Black

Note

Valve Kits: None/Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.

PHOTOS

GUESTBOOK

B

visitor Benjamin Weisenfeld 2022-02-01

Hello, First of all I'd like to wish a happy New Year! I'm interested in this rim profile. What's the major difference between the A29C30D18 and the A29C30D21W? Is it possible to use custom decals & which of the rims is available with the etched decal? Does any of the finish/weave options add or deduct weight? Thanks in advance!

EIE EIE Carbon:

@Benjamin Weisenfeld 1.The main difference of A29C30D21W waved shape profile,the overall depth alternates between 18.5mm to 21mm ,creating a ribbed inner circumference.The waved shape rim surface gives the carbon rim extra vertical compliance. 2.All rims are available for custom decals.May i know what kind of decals do you like?all eie graphic is free.but custom graphic is charged.You can send graphic to us at first ,we will check price for your reference. 3.UD MATTE finish can have the lighter rim finish.or paintless rim also can produce lighter rim. Hope my information help you . Thanks EIECarbon

2022-02-11

REPLY
M

visitor maciej 2022-01-18

Hello, Would you recommend some wheels configuration for light e-mtb bike (20 kg) for 80 kg rider on medium aggressive trail riding. Regards, Maciej

EIE EIE Carbon:

@maciej Dear,we will recommend our A29C30D18 and S29C30D20 these two model for E-bike.And detailed specification has been sent to your email ,please check. Any questions ,please feel free to contact us anytime. Thanks EIECarbon

2022-02-11

REPLY
J

visitor jack 2021-10-04

do you have a 18.5mm deep 27.5 carbon rim with 30 IW?

EIE EIE Carbon:

@jack Thanks for the inquiry. Unfortunately ,650B size is not available for this 18.5mm deep shallow profiles .Do you consider our other profile like V-shaped A650BC30D28 or A650BC29D25 these two models which are very popular and good sellers.You can take a look,hope those two models attracts you as well. If further questions ,feel free to contact us . Thanks EIECarbon

2021-10-06

REPLY
C

visitor Christian Procopio 2021-09-04

I'm interested in buying the A29C30D18 in the AM version. How much for 2 rims shipped to the USA?

EIE EIE Carbon:

@Christian Procopio Thanks for your inquiry. We already sent the quotation to you ,please check your email. Any questions ,please feel free to contact us. Thanks EIECarbon

2021-09-06

REPLY
D

visitor denis 2021-07-10

hello, what version of rims do you recommend for enduro riding? SL, AM, DH for a 60kg person, rocky terrain. hope pro4 hubs available in silver color? I'm french, sorry for the translation.

EIE EIE Carbon:

@denis According to your condition ,we will recommend AM version to you which would be strong enough. As for the Hope Pro 4 hubs ,what specs do you like?And would you like to tell us more detailed requirement?So we can quote for your reference . Thanks EIECarbon

2021-07-14

REPLY
K

visitor krabica 2021-06-18

Which rim do you recommend for trail riding with a full suspension bike for my weight of 105kg?

EIE EIE Carbon:

@krabica Thanks for your inquiry. According to your requirements ,we will recommend our A29C30D18 DH ,A29C29D25 DH,or our S29C30D20 DH version these three models .They would be ok for trail riding with a full suspension bike .And heavier rider weight can narrow your choice A29C30D18 or S29C30D20 these two models. Do you only interested in rims or complete wheels ?Please feel free to let us know your needs ,so we can give suitable advice . Any questions,please feel free to contact us . Thanks EIECarbon

2021-06-25

REPLY
J

visitor Julius 2021-04-12

Hello Guys I'm interested to buy the 29er-I30-D18.5 wheelset for my XC hardtail bike. My weight is 95 kg and I'm thinking about the SL rim version, and I'm wondering if wheels will be strong enough for me, what do you think? I would also would like to get the best offer for this wheelset with dt swiss 350 6 bolt BOOST hubs, sapim CX ray spokes, and would like to know about possible delivery time to Denmark.

EIE EIE Carbon:

@Julius The A29C30D18 this model is very suitable for your demand.The best offer for this build with DT Swiss 350 6-bolt boost ,Sapim CX Ray spoke has been sent to you via email ,please check. Our current manufacturing time is around 3 weeks ,the shipping time is up to the shipping ways you selected. If further request ,feel free to contact us . Thanks EIECarbon

2021-04-26

REPLY
J

visitor Julius 2021-04-12

Hello Guys I'm interested to buy the 29er-I30-D18.5 wheelset for my XC hardtail bike. My weight is 95 kg and I'm thinking about the SL rim version, and I'm wondering if wheels will be strong enough for me, what do you think? I would also would like to get the best offer for this wheelset with dt swiss 350 6 bolt BOOST hubs, sapim CX ray spokes, and would like to know about possible delivery time.

EIE EIE Carbon:

@Julius The A29C30D18 this model is very suitable for your demand.The best offer for this build with DT Swiss 350 6-bolt boost ,Sapim CX Ray spoke has been sent to you via email ,please check. If further request ,feel free to contact us . Thanks EIECarbon

2021-04-26

REPLY
