Product
Item No.: A29C26D18
Warranty: 2 Years (From purchase date)
Basic
Size: 29er
Material: Toray Carbon Fiber (T700,T800,T1000)
Rim Type: Clincher W/Hookless
Tubeless: Compatible

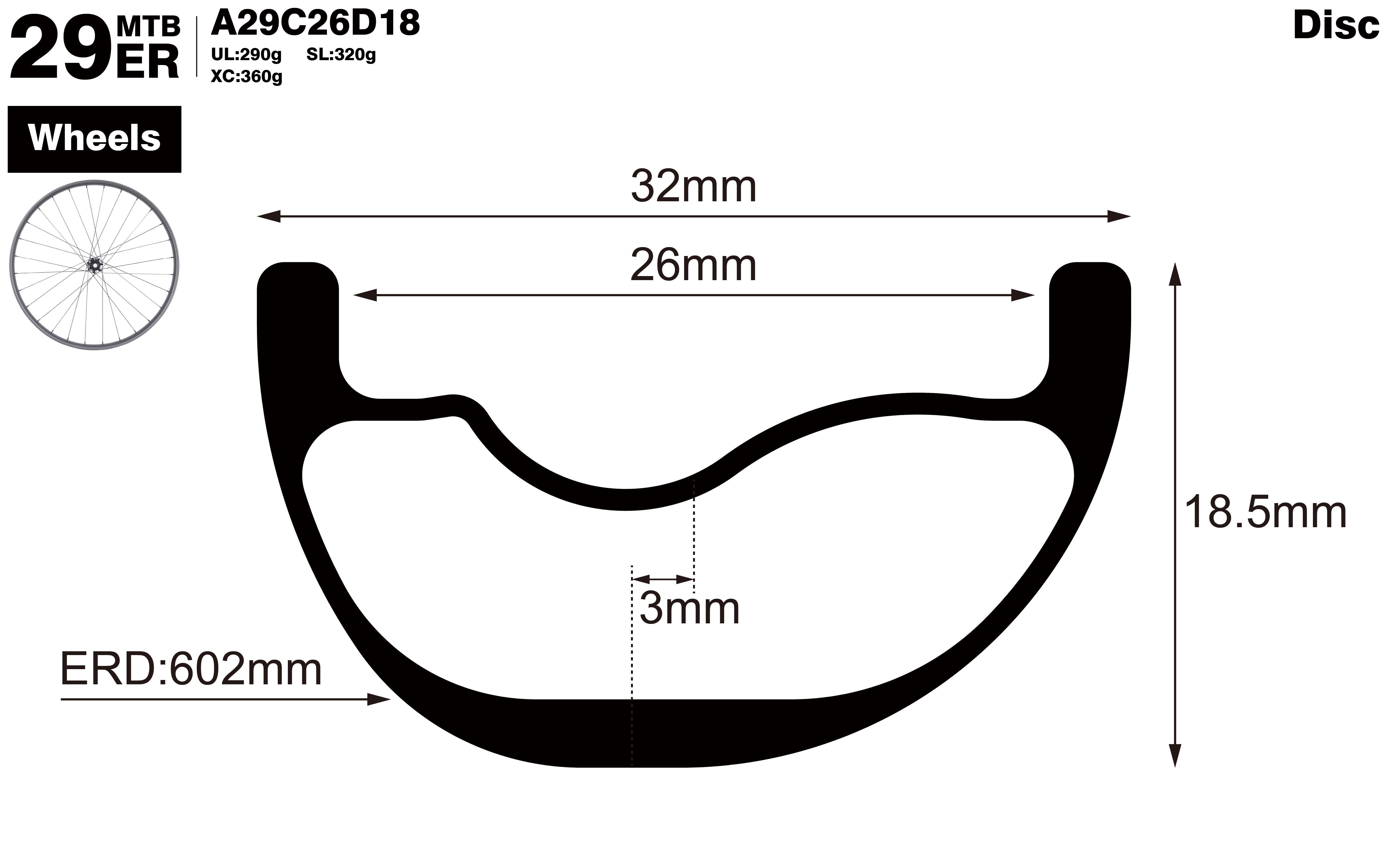

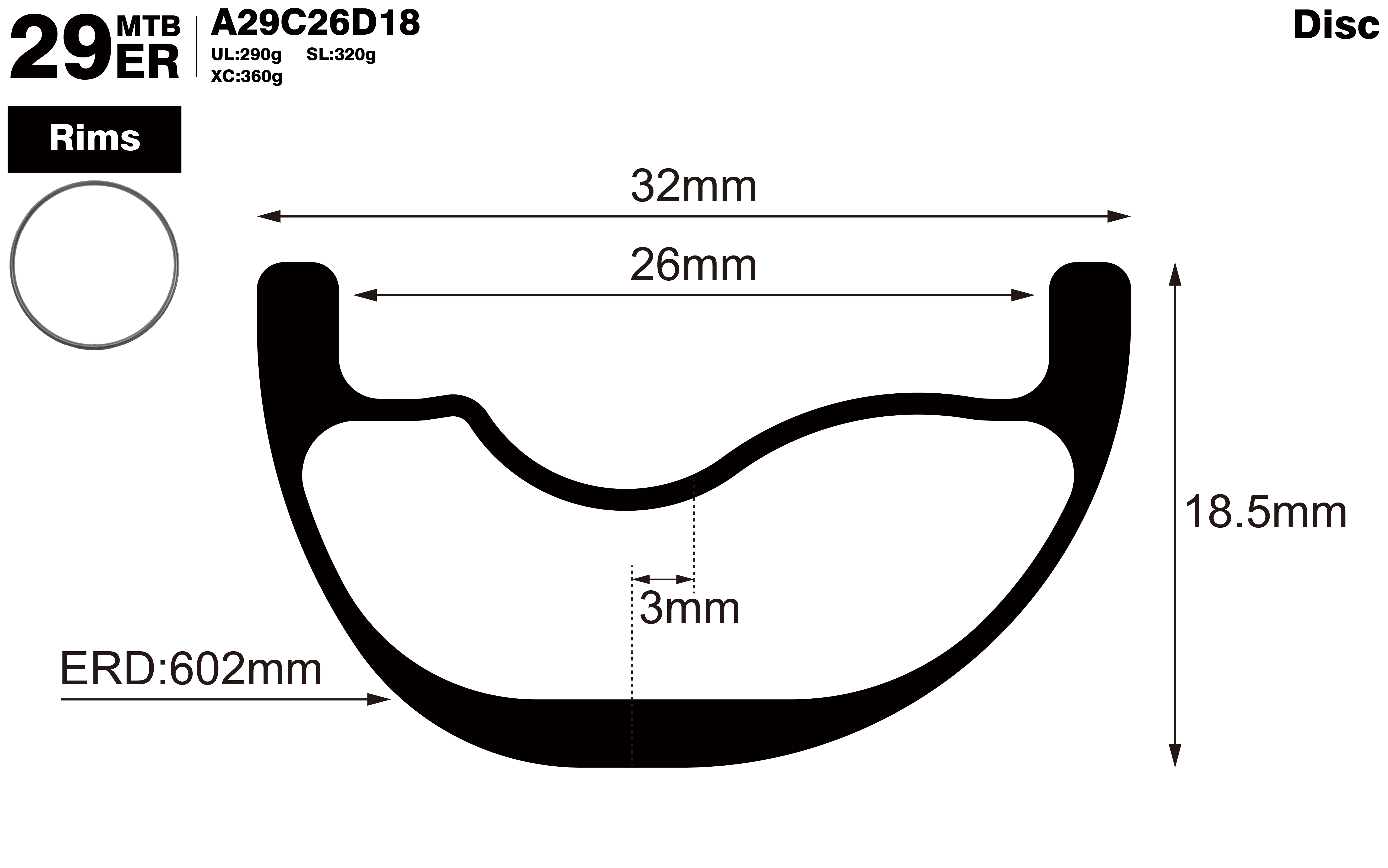

ERD: 602mm(Not including nipple head dimension)
Outer Width: 32mm
Inner Width: 26mm
Rim Depth: 18.5mm
Offset: 3mm
Spoke Hole Angle: ±6°
Spoke Hole Dia: 4.5mm
Valve Hole Dia: 6.5mm(Presta Valve)
Rim Bead Hole : 8.5mm
Customization
Version: XC:360±15g | SL:320±15g | UL:290±15g(Only UD )
Hole Count: 28H | 32H | 24H | 16H | 18H | 20H | 21H | 36H | Custom | 0H
Hole Type: Standard Holes Only
Drilling Pattern: 1:1 | 2:1 | G3 | Custom
Drain Hole: No Drain Holes | With Drain Holes |
Weave: UD | 12K | 3K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom
Finish: Matte/Satin/Glossy/Paintless/Crystal Effect/Colored/Others
Decal: None | Black Glossy | Glossy | Green | Yellow | Blue | Pink | Orange | Grey | Red | Silver | White | Oil Slick | Laser | Matte | Custom | Sticker
Recommendation
Weight Limit: UL:≤90kg,SL:≤100kg,XC:≤105kg
Tire Size: 2.1"~2.7"
Spoke Tension: 120~130kgf for drive side
Max Tire Pressure: Max 40psi recommended
Explanation
Standard Version: XC version is constructed by fully carbon fiber T700
Superlight : SL version is constructed by blend of carbon fiber T700+T800
Ultra-Lightweight: UL version is constructed by blend of carbon fiber T800+T1000.
Application
Cross Country: XC | SL | UL
Hubs
Models: DT SWISS 180 EXP,DT SWISS 240 EXP,DT SWISS 350,Bitex BX211F/R ,Bitex BX212F/R,Bitex BX213F/R,Extralite ,Carbon Ti ,Hope Pro 5,Tune,Novatec,EIE EM300,EIE EM285
Front Axle Size: 15*110mm BOOST,15*110 Torque,15*110 RS-1,15*100mm,15*100 Torque,20*110mm DH BOOST,20*110 Old DH,Lefty 2.0,Lefty1.0,QR*100mm
Rear Axle Size: 12/142mm,12/148mm BOOST,12/157mm Super BOOST,12*150mm,QR/135mm,Single Spee
Driver Body: Shimano MTB 10/11S,Sram XD,Shimano Micro Spline 12sp,Shimano MTB 10/11S Alloy,Sram XD Alloy,Shimano Micro Spline 12sp Alloy
Spokes
Sapim: Sapim CX Ray,Sapim D-light,Sapim Race,Sapim Laser,Sapim Leader,Sapim CX sprint etc.
Pillar: Pillar 1420,pillar wing 20,pillar 1423,pillar 1432,Pillar round oil slick
Berd : Berd Polylight in Black,Berd PolyLight in White
Alpina: Alpina Hyperlite Aero, Alpina Ultralite Aero,Alpina Extralite Aero,Alpina Ultralite Round
Nipples
Sapim: Aluminum Black,Aluminum Red,Brass Oil Slick,Aluminum Silver,Aluminum Blue,Aluminum Gold,Aluminum Green,Aluminum Orange,Aluminum Purple,Black Brass
Pillar: Aluminum Black,Brass Black
Note
Valve Kits: None/Provided if ordered
Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
