B406-S20D25TC32 BMX CARBON RIMS AND CUSTOM WHEELS

20er-I25-D25 BSD406 bmx racing rims 32mm wide 25mm deep and customizable wheelss tubeless compatible

  • B406-20er-I25-D25-symmetric-BMX-bike-carbon-rims-profile-drawing

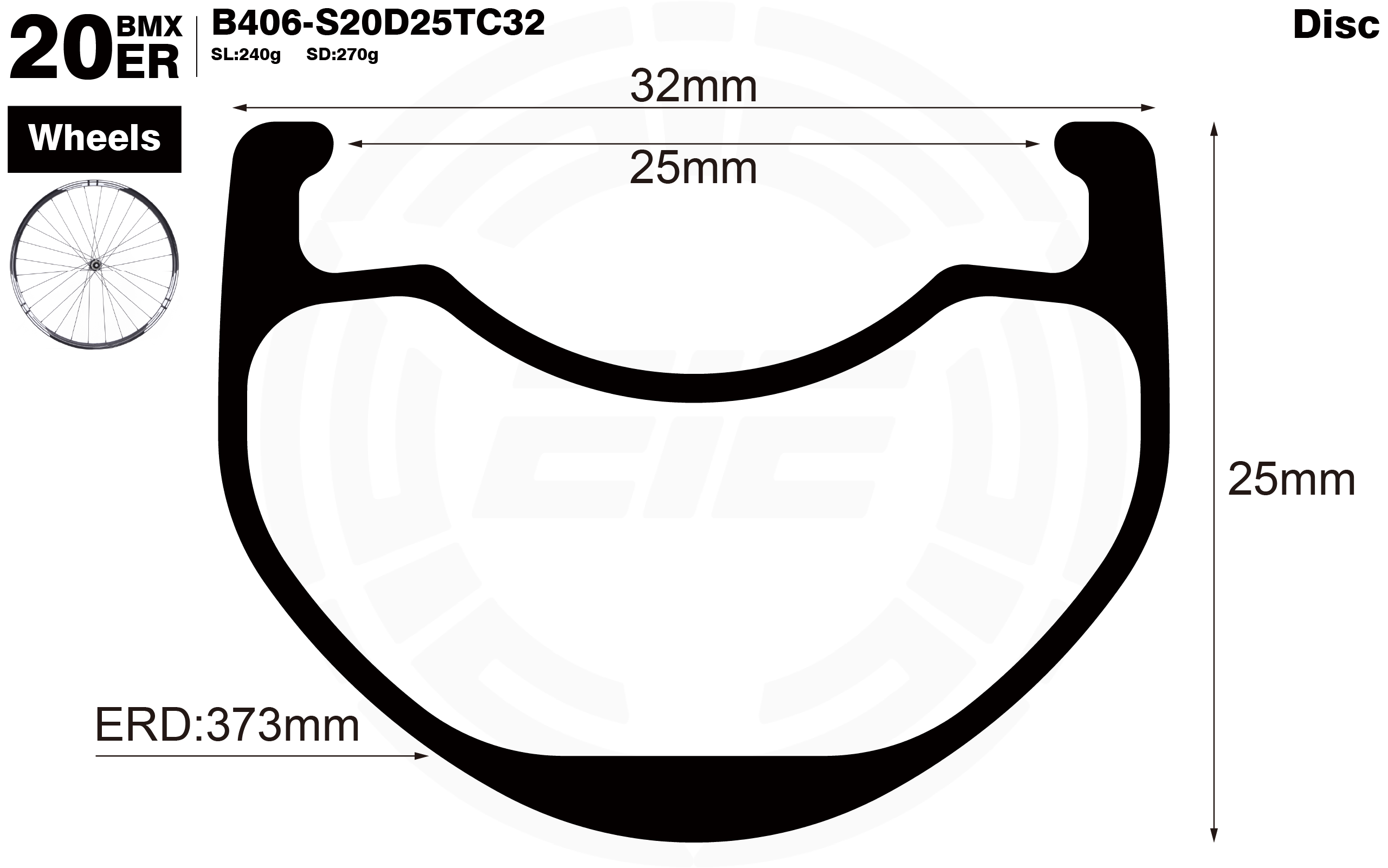

  • B406-20er-I25-D25-symmetric-BMX-bike-carbon-wheels-profile-drawing
  • B406-20er-I25-D25-symmetric-BMX-bike-carbon-rims-profile-drawing
  • B406-20er-I25-D25-symmetric-BMX-bike-carbon-wheels-profile-drawing

Customize & Buy Rim Only
  • SPECS
  • FEATURES
  • WARRANTY
  • Product
    Item No.: B406-S20D25TC32 Warranty: 2 Years (From purchase date)
    Basic
    Size: 20er Material: Toray Carbon Fiber (T700,T800） Rim Type: Clincher W/Hooks Tubeless: Compatible ERD: 373mm(Not including nipple head dimension) BSD: 406mm Outer Width: 32mm Inner Width: 25mm Rim Depth: 32mm Offset: 0 mm(Symmetric) Spoke Hole Angle: ±12° Spoke Hole Dia: 4.5mm Valve Hole Dia: 6.5mm(Presta Valve) Rim Bead Hole : 8.5mm
    Customization
    Brake System: Disc Disc | Non Disc/C-grooved Brake | Non Disc/AC3 grooved brake Version: SD:270±10g | SL:240±10g Hole Count: 24H | 28H | 32H | 16H | 18H | 20H | 21H | 36H | Custom | 0H Drilling Pattern: 1:1 Drilling | 2:1-T Drilling | 2:1-F Drilling | G3 Drilling | Custom Drilling Hole Type: Standard Holes | Staggered Drilling | Without Rim Bead Holes(Tubeless Ready) | Centered Line Drilling | Offset Drilling | Dual Drilling | Internal Nipple Holes | 2:1-F UST Drilling | 2:1-F Hidden Nipples Drilling | 2:1-F Standard Holes Drilling | 2:1-T US Drain Hole: No Drain Holes | Drain Holes | Weave: UD | 3K | 12K | Butterfly | Marble | 3K Twill Vertical | 3K Twill Horizontal | 12K Twill Vertical | 12K Twill Horizontal | 6-UD Braided | 8-UD Braied | 4-UD Braided | Custom Finish: Matte | Satin | Glossy | Paintless | Black Crystal | Silver Crystal | Purple Crystal | Blue Crystal | Colored | Matte Gold | Custom Decal: None/Black/White/Oil Slick/Red/Blue/Green/Orange/All Pantone Color/Lasered /
    Recommendation
    Weight Limit: ≤100kg Tire Size: 28~50C Spoke Tension: 120~130kgf for drive side Max Tire Pressure: Max 120psi recommended
    Explanation
    Standard Version: SD version is constructed by fully carbon fiber T700 Superlight Version: SL version is constructed by blend of carbon fiber T700 and T800
    Application
    SD Version: BMX SL Version: BMX
    Hubs
    Models: Custom Front Axle Size: Custom Rear Axle Size: Custom Driver Body: Custom
    Spokes
    Sapim: Custom Pillar: Custom Carbon Spoke: Custom Alpina: Custom
    Nipples
    Sapim: Custom Pillar: Custom
    Note
    Valve Kits: Provided if ordered Additional Request: Leave a note at checkout or contact us if you have special request ,such as spare spoke and nipples ,or mix nipple color for wheels build.
PHOTOS
GUESTBOOK
  • M
    visitor Maximilian Denger 2026-10-13
    Hello, I am building a cargo bike that i want to equip with lightweight carbon rims. I need a 20" front wheel and a 26" rear wheel. I looked on the website and considered the B406-S20D25TC32 for the front and the S26C25D30 for the rear rim. I need hooked rims, so that i can run appropriately high pressures with 50mm tires. The use case is lower stress than the stated use for BMX/MTB, instead being closer to Gravel Riding. The system weight limit of the bike frame is 185kg and i am wondering what options i would have in order to get close to that limit with these rims.

    EIE EIE Carbon:

    Hello Maximilian, Thank you for your message. We think you select the correct product from our category.Front with B406-S20D25TC32 and rear S26C25D30 rims are no problem to meet your requirement. They all have a hooked bead and tubeless compatible.The recommendation of max tyre pressure for hooks rim is 120psi.So it's no problem to fit with higher tire pressure if you run with 50mm tires. Considering your bike frame is 185kg and the riding terrain is closer to gravel riding,we recommend using the rim with heavier/reinforced versions. Any other questions please feel free to contact us. Thank you EIE carbon

    2026-10-16
